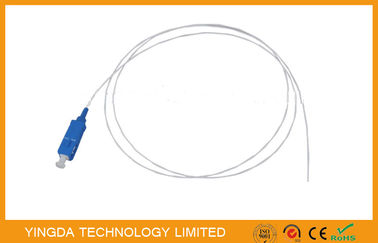

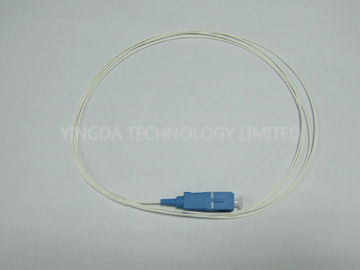

PVC 1.5Mtrs 0.9mm SC / UPC Fiber Optic Pigtail SM Loose Buffer / Jumper Cable
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO SGS ROHS |
หมายเลขรุ่น | FPC-SC-OS1-09-12 |
จำนวนสั่งซื้อขั้นต่ำ | 500 pcs |
ราคา | negotiable |
รายละเอียดการบรรจุ | 1 pc/ bag, 1500pcs / carton box |
เวลาการส่งมอบ | 7days after payment |
เงื่อนไขการชำระเงิน | Western Union, T/T |
สามารถในการผลิต | 200,000 pcs per month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xconnector | SC/UPC | fiber count | simplex |
---|---|---|---|
insertion loss | <0.2dB | fiber type | 9/125um G657A1 |
package | plastic bag | cable diameter | 0.9mm,2.0MM,1.6MM,1.8MM |
jacket | LSZH,pvc | connector color | white, yellow |
temperature | -40~+85°C | customer logo | yes |
wavelength | 1310nm, 1550nm | ||
แสงสูง | optical fiber pigtail,ribbon pigtail |
Pigtail SC SM 1.5Mtrs 0.9mm, SC/UPC Fiber Optic Pigtail SM Loose Buffer
Fiber optic pigtail is widely used in fiber optic terminal box, ODF rack , cabinet to connect with
fiber optic media converter/transceivers(also use coupler, jumper/patch cord,etc.)
ITU-T International Telecommunication Union Telecommunication Standardization Organization
(ITU-T for ITU Telecommunication Standardization Sector), specified three kinds of commonly
used optical fiber: G.652 fiber,G.653 fiber and G.655 fiber.
Optical fiber fusion technology is mainly to connect the fiber and fiber or fiber and pigtails by
fusion splicer. It make the bare fiber of cable with the pigtails fused together into a whole,but
the pigtail has a separate connector. Through connected with optical fiber transceiver, we can
connect the fiber with twisted pair cable to the socket. The main tools need in splicing: optical
fiber termination box, optical fiber transceiver(media converter), pigtail, coupler, special use
cable stripper, optical fiber clever, etc.
Feature
1. Low insertion loss, high return loss
2. High dense connection, easy for operation
3. High credibility and stability
4. Good in repeatability and exchangeability
Application
1. Testing equipment
2. FTTX+LAN
3. Optical fiber CATV
4. Optical communication system
5. Telecommunication
Specification
Parameter |
Unit |
FC, SC, LC/ Armoured fiber pigtail |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
Operating temperature |
°C |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
Storage temperature |
°C |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
