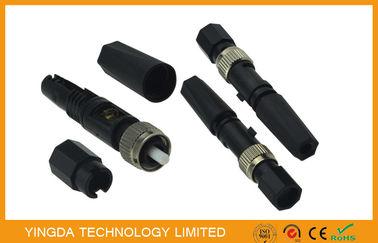

Single Mode Assembly Connector , FC Fiber optic connector Field Installation FTTH
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO SGS ROHS |
หมายเลขรุ่น | YD-FiC-FC/UPC |
จำนวนสั่งซื้อขั้นต่ำ | 500PCS |
ราคา | Negotiable |
รายละเอียดการบรรจุ | 10 pcs / blister box,1500 pcs / carton |
เวลาการส่งมอบ | 5 working days after received your payment |
เงื่อนไขการชำระเงิน | T/T or western Union |
สามารถในการผลิต | 500,000pcs per month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | Plastic | house color | Black |
---|---|---|---|
fiber type | single mode | insertion loss | < 0.3 dB |
return loss | > 45 dB,(typical 50dB) | pack | blister box |
แสงสูง | quick assembly connector,FTTH connector |

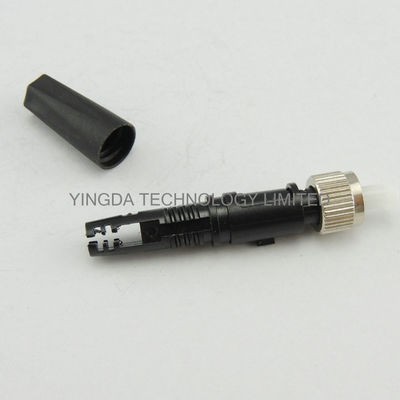

FC Quick Assembly Connector, FC Fiber Optic Fast Connector Field Installation FTTH
Advantage:
- Suitable for; 2mm* 3mm drop fiber cable
- Ceramic V-groove structure, good sealing performance, flame retardant
- Insertion loss: the average ≤ 0.3 dB, MAX ≤ 0.5dB
- Return loss: ≥45dB
- No need epoxy or polished, field-installable, factory embedded fiber
- Fiber Cable cut length: 15mm /10mm
Description
Field Assembly Connector (Fast Connector) is designed for simple and fast field termination of
single fibers, without the additional assembling tools. The heart of the Quick/ fast connector is
a pre-polished ferrule and a mechanical splice inside the connector body. They are widely used
in FTTx, Connecting up Renovation of Computer/controlling Room applications. The installation
process takes about two minutes, and the connector during the installation process does not
require any adhesive and curing process.
YINGDA provide field assembly connectors with unique design of the patented mechanical
splice body which incorporate a factory-mounted fiber stub and a pre-polished ceramic ferrule.
It is not only for single-mode or multimode fiber,and can also choose to 900 microns, 3 mm and
the introduction of cable 8 font type.
Features
- Easy assembly process
- Available in LC, SC, and ST connector styles
- Available in multimode or singlemode versions
- Factory polishing eliminates loss concerns
- Fiber can be reseatedNo expensive tools required
- No epoxy required
- Anaerobic adhesive-style, field-installable connectors
- Most robust connection, ideal for indoor and outside plant applications
- Repeatable times is no less than 50 times;
- Long life span design, more than 30 years.
- Precise mechanical dimensions
- Low insertion loss, high return loss
- Comply standard of IEC61754-4
Application
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber / Home (FTTH) applications
- Repair/replacement requirements
- Equipment test leads
Specification
Type |
Parameters |
Insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
Return loss |
≤ -40dB |
Bare fiber strength |
>5N |
Clad strength |
>10N |
Tension |
>50N |
Mechanical durability (500times) |
IL ≤ 0.2dB & RL ≤ 5dB |
Operating Temperature |
5 ºC to +70 ºC |
Order information
- Connector: SC/UPC, SC/APC
- Cable type: indoor cable 0.9mm,2.0mm,3.0mm or drop cable 2x3mm
- Connector color: black
- Dust cap color: white, green
- Package: 10pcs/set or 1pc/set, customized
- OEM ok
