PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xFiber count | 1 fibers | connector material | metal + plastic |
---|---|---|---|
dustcap color | red | sleeve material | ceramic |
outer sheath | LSZH | fiber type | single mode SM |
polish mode | UPC / PC | working temperature | -40 ~ +80 °C |
แสงสูง | fiber optic coupler,bare fiber adapter |

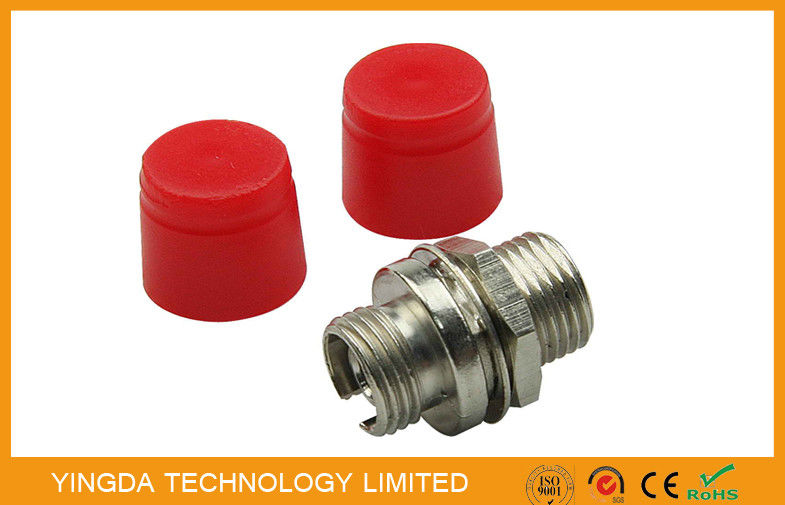

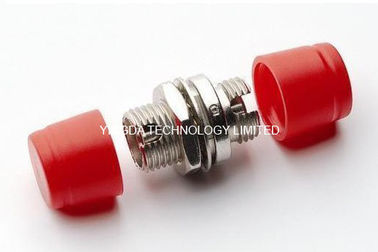

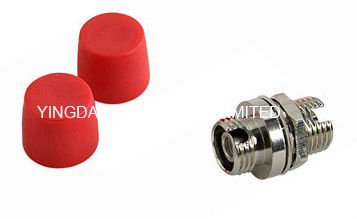

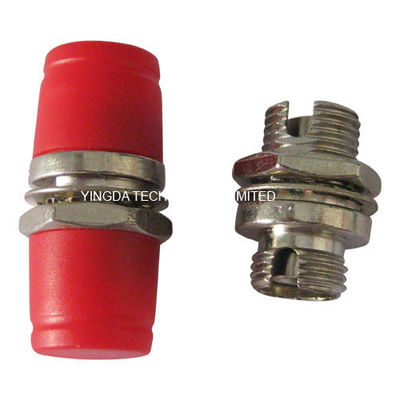

CATV Fiber Optic Adapter FC Small D Hole, FC Adapter D Hold SM SX
Fiber Optic Adapter (also called coupler), is a kind of connector in optical fiber transmission,
whose both ends can be inserted the different optical fiber connector such as FC, SC, ST, LC,
MTRJ, MPO, E2000 to make them interchange, and widely used in optical distribution frame(ODF),
optical Fiber communication equipment, instruments, etc.It is superior performance, stable and
reliable. Some call fiber optic adapter as optical fiber connectors, in fact, its two different items.
Features
- Low insertion loss< 0.2 dB
- Good interchangeability
- Good repeatability
- 100% test in factory
- Blister box or plastic bag pack
- PBT or ABS material
Application
- optical fiber communication system
- cable TV network
- local area network (LAN), optical network domain
- optical fiber to the home (FTTP)
- video transmission
- test instruments
Specification
Item |
Value |
Wavelength |
1200-1600nm |
Polish method |
UPC,PC,APC |
IL |
≤0.2dB |
Max. IL |
≤0.3dB |
Repeatability |
≤0.1dB |
Interchangeability |
≤0.2dB |
Sleeve material |
Cermic or metal |
Working/Storage temperature |
-40~+85℃ |
Matings time |
>1000 |
Standard |
Bellcore TA-NWT-001221/001209 |
Order information
Endface |
Fiber mode |
Fiber core |
Sleeve |
PC |
Multi mode |
simplex |
Cermic |
UPC |
Single mode |
duplex |
Phosphor bronze |
All FC Fiber Adapter Models:
FC Adapter Small D hole More Details:
