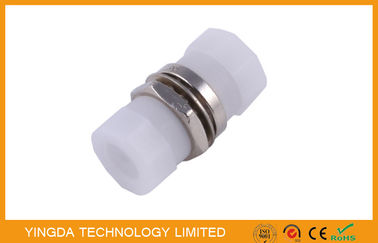

Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO,SGS
หมายเลขรุ่น AD-FC-SM01-W
จำนวนสั่งซื้อขั้นต่ำ 500pcs
ราคา Negotiable
รายละเอียดการบรรจุ 50 pc / box
เวลาการส่งมอบ 5 working days
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 200km/ month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Fiber count 1 fibers connector material metal + plastic
dustcap color white sleeve material ceramic
fiber type single mode SM polish mode UPC / PC
working temperature -40 ~ +80 °C wavelength 1310/1550nm
แสงสูง

fiber optic coupler

,

fiber optic adaptor

ฝากข้อความ
รายละเอียดสินค้า

Fiber Optic Coupler FC SM SX, Fiber Adapter FC /PC D Type Metal Simplex





Fiber Optic Adapter (also called fiber opptic coupler), is a kind of connector in optical fiber transmission,

whose both ends can be inserted the different optical fiber connector such as FC, SC, ST, LC,

MTRJ, MPO, E2000 to make them interchange, and widely used in optical distribution frame(ODF),

optical Fiber communication equipment, instruments, etc.It is superior performance, stable and

reliable. Some call fiber optic adapter as optical fiber connectors, in fact, its two different items.



FC type



The earliest connector was developed by NTT, Japan. The abbreviation of FC is ferrule connector,

which indicates that its external strengthening way is to use metal sleeve, fastening way as the turn

buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has

simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone

to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type

of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the

insertion loss and return loss performance has improved significantly.



Features



  • Low insertion loss< 0.2 dB
  • zinc alloy or copper material
  • Good interchangeability
  • Good repeatability
  • 100% test in factory
  • Blister box or plastic bag pack



Application

  1. optical fiber communication system
  2. cable TV network
  3. local area network (LAN), optical network domain
  4. optical fiber to the home (FTTP)
  5. video transmission
  6. test instruments



Specification



Item

Value

Wavelength

1200-1600nm

Polish method

UPC,PC,APC

IL

≤0.2dB

Max. IL

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000

Standard

Bellcore TA-NWT-001221/001209



Order information



Endface

Fiber mode

Fiber core

Sleeve

PC

Multi mode

simplex

Cermic

UPC

Single mode

duplex

Phosphor bronze

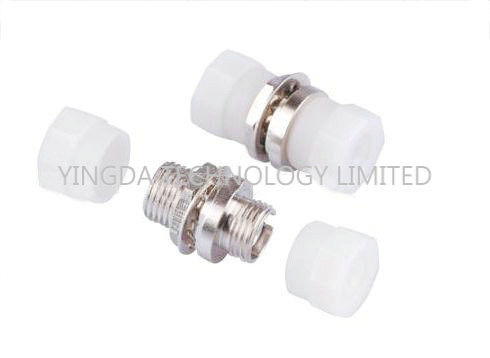

FC Adapter Small D hole More Details:



Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex 0Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex 1Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex 2Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex 3Fiber Optic Coupler FC SM SX , Fiber Adapter FC / PC D Type Metal Simplex 4
