Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO,SGS
หมายเลขรุ่น AD-FC-SA01-G
จำนวนสั่งซื้อขั้นต่ำ 500pcs
ราคา Negotiable
รายละเอียดการบรรจุ 50 pc / box
เวลาการส่งมอบ 5 working days
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 200km/ month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Fiber count 1 fibers connector material metal + plastic
dustcap color green sleeve material ceramic
fiber type single mode SM polish mode APC
working temperature -40 ~ +80 °C wavelength 1310/1550nm
แสงสูง

fiber optic coupler

,

bare fiber adapter

ฝากข้อความ
รายละเอียดสินค้า

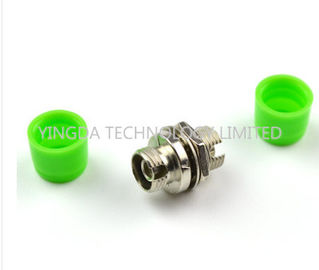

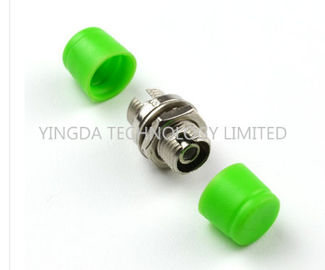

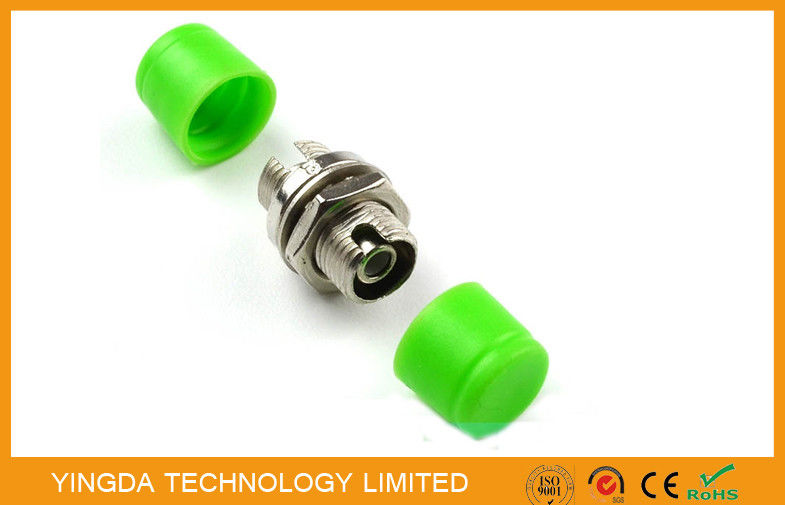

Zinc Alloy FC Fiber Optic Adapter, FC / APC Copper Adapter Coupler Green



FC type



The earliest FC connector was developed by NTT, Japan. The abbreviation of FC is ferrule connector,

which indicates that its external strengthening way is to use metal sleeve, fastening way as the turn

buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has

simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone

to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type

of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the

insertion loss and return loss performance has improved significantly.



Fiber Optic Adapter called fiber opptic couple, it is a kind of connector whose both ends can be

inserted the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000 to make

hem interchange, and widely used in optical distribution frame(ODF), optical Fiber communication

equipment, instruments, etc.It is superior performance, stable and reliable.





Features



  • Low insertion loss< 0.2 dB
  • zinc alloy or copper material
  • Good interchangeability
  • Good repeatability
  • 100% test in factory
  • Blister box or plastic bag pack



Specification



Item

Value

Wavelength

1200-1600nm

Polish method

UPC,PC,APC

IL

≤0.2dB

Max. IL

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000

Standard

Bellcore TA-NWT-001221/001209



Application

  1. optical fiber communication system
  2. cable TV network
  3. local area network (LAN), optical network domain
  4. optical fiber to the home (FTTP)
  5. video transmission
  6. test instruments



Order information



Endface

Fiber mode

Fiber core

Sleeve

PC

Multi mode

simplex

Cermic

UPC

Single mode

duplex

Phosphor bronze





FC Adapter Small D hole More Details:



Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green 0Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green 1Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green 2
