SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO,SGS
หมายเลขรุ่น AD-SCA-01/S
จำนวนสั่งซื้อขั้นต่ำ 100pcs
ราคา Negotiable
รายละเอียดการบรรจุ 50 Pcs / box
เวลาการส่งมอบ 5 working days
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 200km/ month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Fiber count simplex adapter connector material plastic
adapter color green sleeve material ceramic
fiber type singlemode polish mode APC
insetion loss < 0.2dB house material ABS
connector SC shutter material plastic transparent
แสงสูง

fiber optic coupler

,

fiber optic adaptor

ฝากข้อความ
รายละเอียดสินค้า

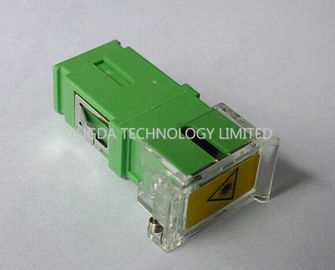

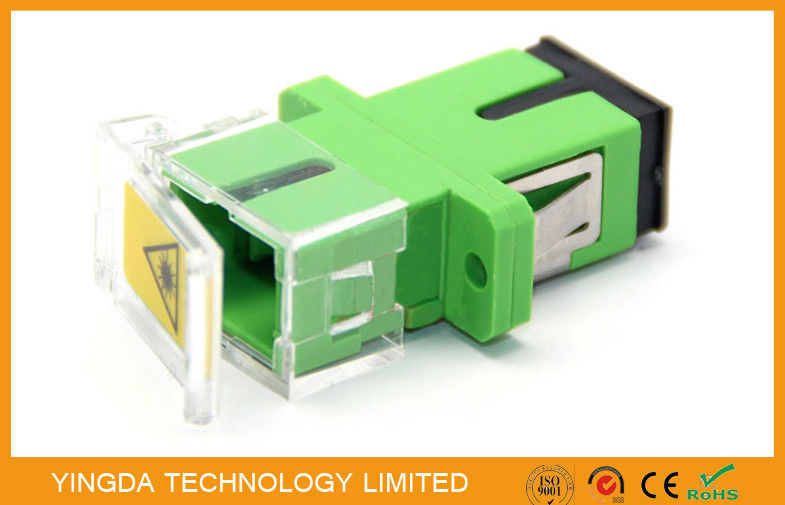

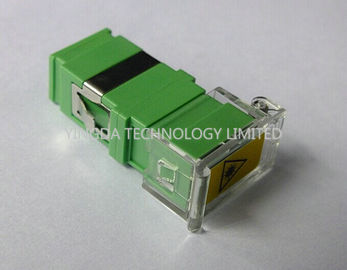

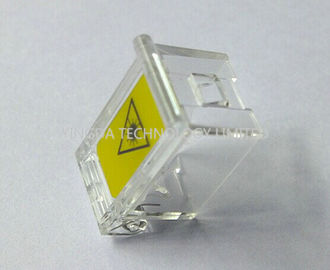

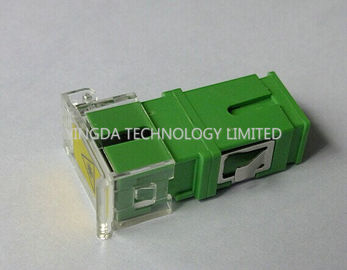

SC Fiber Optic Adapter With Shutter Transparent Plastic, SC Shutter Adapter Back Cover​





SC simplex fiber optic shutter adaptors are specially designed to suit FTTH applications. The shutters

are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered

adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the

same precision and optical performance as the normal adapter.



YINGDA shutter adapters are available in SC simplex/duplex and LC duplex/quad designs. They are

available with zirconia or phosphor bronze alignment sleeves in flange or flangeless body types.

The connector color can be blue, green, gray or aqua. It is used to align and join two or more

fiber-optic connection, to ensure alignment of two fiber-optic connections.





Features

  1. Compliant with: ANSI, Bellcore, TIA/EIA standards
  2. Dust caps protect against debris and contamination
  3. Low insertion <0.2dB
  4. high return loss >55dB
  5. Active device termination



 Specification



Characteristics

Conditions

Values

Durability

500times

<0.2dB

Temperature Cycling

-40 ~ +80℃ (42Cycles)

<0.2dB

Humidity Cycling

75℃, 95%/336hr

<0.2dB

Vibration

10~55Hz(2hr)

<0.2dB

Impact

1.5m drop, 8times

<0.2dB



Application

  1. Telecommunication
  2. CATV
  3. Data Communications
  4. Instrumentation
  5. Local Area Networks



Order information



Connetor type

SC, LC

Cable type

SM, OM1, OM2, OM3, OM4

Fiber count

Simplex, duplex, quad

Sleeve

Ceramic, Phosphor bronze

Connector color

Blue, green, beige, aqua, purple

Shutter material

Plastic, metal

Polish method

UPC, PC, APC
