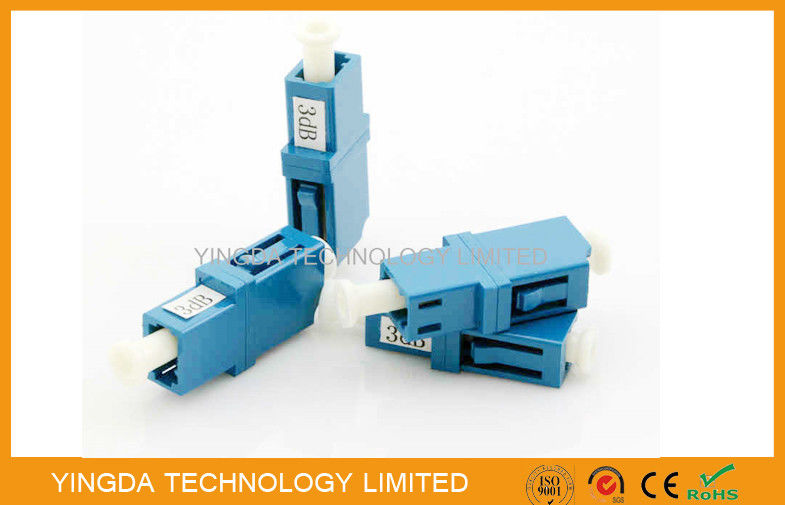

Metal Fixed LC PC 3dB Singlemode Fiber Optic Attenuator Light Weight

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น ATTN-LCS-01-B03
จำนวนสั่งซื้อขั้นต่ำ 100PCS
ราคา Negotiable
รายละเอียดการบรรจุ 50 pc / plastic blister box or customized
เวลาการส่งมอบ 3-5 days
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 50,000pcs per month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Attenuation 3dB wavelength range 1260-16500nm
test wavelength 1310nm, 1550nm material metal
Additional loss 0.1dB Working temperature -40~+85 (℃)
Fiber optic type single mode standard GR910, IEC
connector LC/UPC connector color blue
แสงสูง

optical fiber attenuator

,

inline optical attenuator

ฝากข้อความ
รายละเอียดสินค้า

LC Fixed Attenuator PC 3dB Singlemode, Fiber Optic Attenuator LC 3dB IEC Standard





Optical attenuator is a kind of precise instrument which provide different attenuation values according

to the need of the project. Attenuation method of the product are: attenuate through the gap between

the optical fiber, attenuate according to The contact part of the leaky, and attenuate according to

attenuation fiber.



Features

  1. Conforms to GR910, accord with IEC standard
  2. Various attenuation way, all kinds of connectors available
  3. Low insertion loss and additional loss
  4. High attenuation accuracy
  5. High return loss, compact size, light weight
  6. High stability, high reliability



Application

  • Optical fiber communication system
  • Fiber optic data communication network
  • Optical fiber CATV network
  •  Other optical testing technology



Specification

Item

Attenuation/dB

Precision

 error (dB)

Working

wavelength

Return

loss(dB)

Connector type

Coupler type

1—2

≤±0.25dB

1310nm/1550nm

≥35dB

FC;SC/PC

3—15

≤±10%dB

1310nm/1550nm

≥35dB

FC;SC/APC

15-30

≤±1.5dB

1310nm/1550nm

≥35dB
