Plastic PBT Fixed Fiber Optic Attenuator SC / UPC 3dB 5dB 10dB , SC 15dB Attenautor
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xAttenuation | 3dB | wavelength range | 1260-16500nm |
---|---|---|---|
test wavelength | 1310nm, 1550nm | material | plastic PBT |
Additional loss | 0.1dB | Working temperature | -40~+85 (℃) |
Fiber optic type | single mode 9/125um | standard | GR910, IEC |
connector | SC/UPC | connector color | blue |
แสงสูง | build out attenuator,optical fiber attenuator |

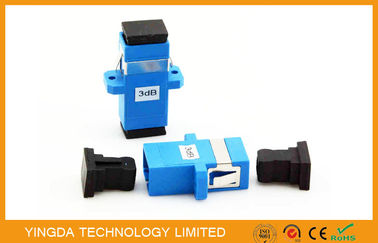

SC Fiber Optic Attenuator SC/PC SC/UPC 3dB 5dB 10dB, Fixed Attenautor SC 15dB
Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power
at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,
it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,
fiber optic attenuator name is based on the connector type and the attenuation level.
SC 3dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can reduce
the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB, and it is
also available to provid upto 30dB.
Main features
- Connector style available in LC, FC, SC, ST and MU
- High performance unit
- Stable attenuation values
- Customized to your volume requirements
- Environmental stable
Applications
- Fiber in The Loop. (FITL)
- Passive Optical Networks
- Fiber to the Home. (FTTH)
- Test equipments
- LANs
- CATV
- Video distribution
Specifications
Operating Wavelength |
SM:1200~1600nm, 1310nm, 1550nm, 1310/1550nm; MM: 850nm, 1300nm
|
Attenuation Value |
1~30dB |
Connector Type |
FC, SC, LC, ST, MU, E2000, MTRJ |
Return Loss |
PC ≥50dB; UPC ≥55dB; APC≥ 65dB |
Attenuation Accuracy |
1~10dB ≤ ± 0.5dB; 11~20dB ≤ ± 1.0dB; 21~30dB ≤ ± 2.0dB |
Maximum Optical Input Power |
200mW |
Operating Temperature |
-40℃ ~ + 75℃ |
Storage Temperature |
-40℃ ~ + 75℃ |
