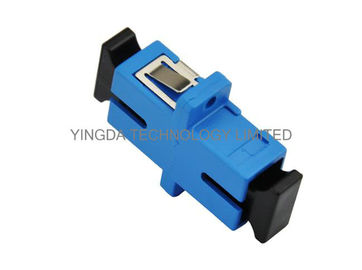

FITL SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB For Network Testing
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xAttenuation | 5 dB | wavelength range | 1260-16500nm |
---|---|---|---|
test wavelength | 1310nm, 1550nm | material | plastic PBT/ABS |
Additional loss | 0.2dB | Working temperature | -40~+85 (℃) |
Fiber optic type | single mode 9/125um | standard | GR910, IEC |
connector | SC / PC | connector color | blue |
แสงสูง | build out attenuator,optical fiber attenuator |

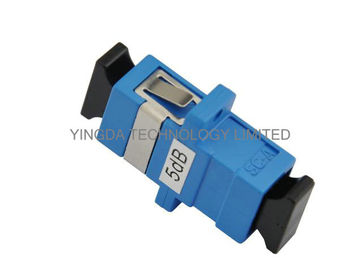

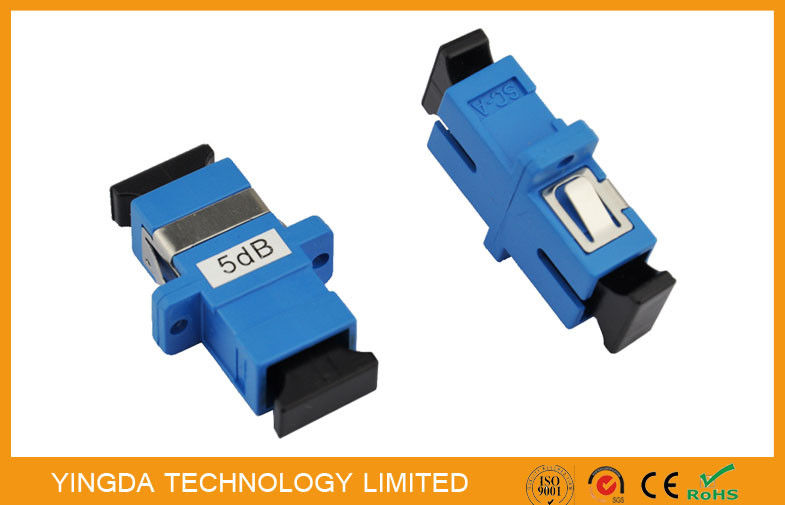

SC / PC Fiber Optic Connector Attenuator 3dB 5dB 10dB, SC Adapter Attenuator 5dB
Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power
at a certain level, the most commonly used type is female to male plug type fiber optic attenuator,
it has the optical fiber connector at one side and the other side is a female type fiber optic adapter,
fiber optic attenuator name is based on the connector type and the attenuation level.
SC/PC 5dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can
reduce the optical fiber power level by 7dB. Commonly used attenuation range is from 1dB to 25dB,
and it is also available to provid upto 30dB.
FEATURES
- Wavelength Independent
- Low ripple
- Excellent environmental stability
- Design certified to more than 200mW continuous
- Power handling capacity with no degradation in performances
- Backreflection performance to < -55dB available
- for UPC and < -60dB available for APC
- Polarization insensitive
APPLICATIONS
- Long Haul Telecommunication
- Fiber in the Loop (FITL)
- Local Area Networks (LAN)
- Cable TV & Video distribution
- Passive Optical Networks
- Network Testing
Specification
Parameter |
Condition |
Value [dB] |
||
Min |
Typical |
Max |
||
Attenuation |
|
|
1 ~ 10 |
|
|
|
15, 20 |
|
|
Return Loss |
SPC |
> 40 |
> 45 |
|
UPC |
> 50 |
> 55 |
|
|
APC |
> 60 |
> 65 |
|
|
Attenuation Accuracy |
1 ~ 10 |
|
±0.5 |
|
15 ~ 20 |
|
±1.0 |
|
|
Operating Wavelength [nm] |
1310 / 1550 |
|||
Operating Temperature |
-40℃ ~ +85℃ |
|||
Humidity |
75℃, RH 95% |
