SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น ATTN-MU-01-B07
จำนวนสั่งซื้อขั้นต่ำ 100PCS
ราคา Negotiable
รายละเอียดการบรรจุ 1 pc / plastoc bag
เวลาการส่งมอบ 3-5 days
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 50,000pcs per month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
Attenuation 1dB - 20dB fix test wavelength 1310nm, 1550nm
body material metal Additional loss 0.1dB
Working temperature -40~+85 (℃) Fiber optic type single-mode, multimode
industry standard Telcordia TA-NWT-001209 connector type SC/APC
dust cap color Green connector shape female to male attenuator
แสงสูง

build out attenuator

,

inline optical attenuator

ฝากข้อความ
รายละเอียดสินค้า

SC APC SM 1dB Attenuator, Fiber Optic Build Out Attenuator SC 1dB, SC Attenuator





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.



Features:

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



Material:

  • metal Housing
  • Ceramic Zirconium Sleeve
  • dust cap color; green for APC, black for UPC



Specification:



Return Loss:

Less than 50 dB (SPC)



Less than 55 dB (UPC)



Less than 65 dB (APC)

Attenuation Accuracy:

+/-0.5 (1-10)



 +/-1.0 (11-30)

Polarization Dependent Loss:

Less than 0.2dB

Maximum Optical Input Power:

200mW

Operating Temp. Range:

-40 ~ 80°C

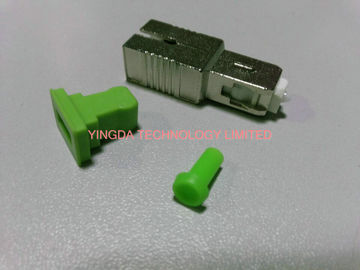

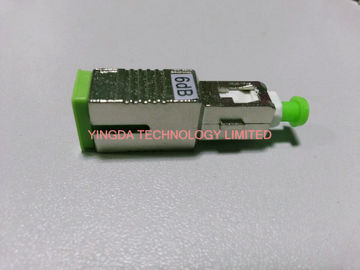

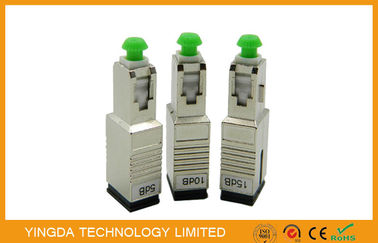

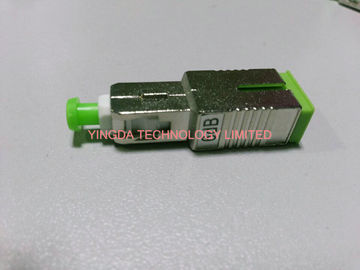

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 0SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 1SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 2SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 3

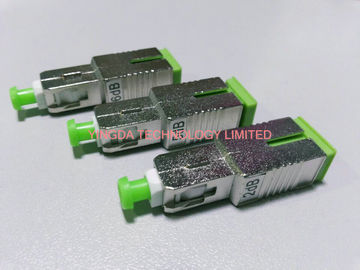

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve 4
