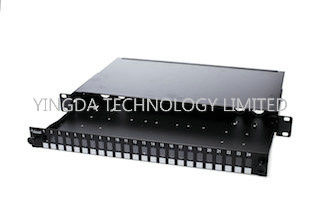

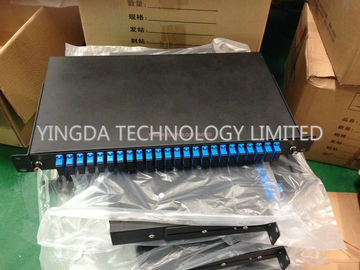

1U 48 Fibers 24 Port SC Duplex Black Box Fiber Optic Patch Panel Slding Drawer Type

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO SGS ROHS
หมายเลขรุ่น GPSM-2SC24
จำนวนสั่งซื้อขั้นต่ำ 100 pcs
ราคา negotiable
รายละเอียดการบรรจุ 1pc / box, 5 pcs / carton box
เวลาการส่งมอบ 5-8days after payment
สามารถในการผลิต 500,000 pcs per month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
material cold rolled steel color black
capacity 48 fibers adapter SC duplex adaptor
cable ports 4 pcs application FTTH FTTX FTTB ODN PON network
dimension 430*250*1U thickness 1.0mm
แสงสูง

rack mount odf

,

sliding patch panel

ฝากข้อความ
รายละเอียดสินค้า

1U 48 Fibers 24 Ports SC Duplex Fiber Optic Patch Panel, 19 Inch Patch Panel





Slding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical

 fiber transmission communication network, which is suitable for indoor optical cable splice directly

and branch connection, and protective the fiber.





Features

  • Applicable in the termination and 19'' standard structure,
  • Metal sliding design
  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*250*1U available,for cost save.

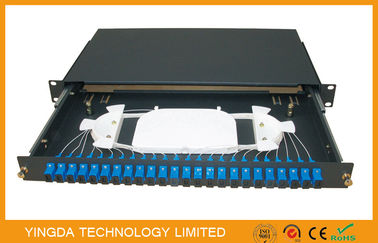

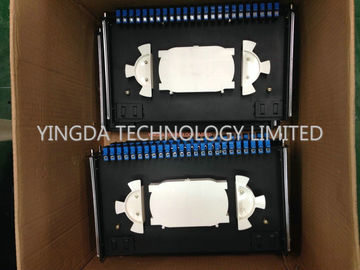

Patch Panel Structure



Include 3 parts: box body, internal components, optical fiber connector protector.



1. Box body shell

convenient to open and install, have high voltage grounding device for the metal components.

2. Internal components mainly 3 items:



A. support: the internal structure body, used for the internal support;

B. Splice trayto store optical fiber connectorprotection pieceand the remaining fiber,

the remaining optical fiber length≥1.6m, bend radius37.5mm, also have remark to identify the fiber;

C.: fixed device: to fix the optical cable sheathstrengthen member and wiring pigtail.

Protection parts of fiber optic connectors: sleeve and cable rubber gland



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12

430*300*1U

12

485*420*350

5

29

GPSM-1U-FC24

24

485*420*350

5

29

GPSM-1U-2SC24

48

485*420*350

5

29

GPSM-2U-FC48

430*300*2U

48

500*355*550

4

26.5

GPSM-4U

130*300*4U

192

500*350*540

1

18.9



Environmental requirements:



Not suitable outdoor use, if need to use, should take protective measures.

Working temperature: -25 to +40 °C

Storage temperature: -25 to +55 °C

Relative humidity: 85% (30°C)

Atmospheric pressure: 70 ~ 106kPa

Service life: 20 years



Material properties

Fiber Optic Patch panel materials is corrosion resistancestable physical and chemical properties;

 all material must be compatible, and is compatible with optical cable sheath and wiring pigtail sheath.

To prevent corrosion and other electrical damage, these materials must be compatible with the other

equipment used in the patch panel



1.  If the patch panel use engineering plastics, its combustion performance shall be in accordance

 with A GB/T5169.7 test, the test last for 30s.

2. optical fiber connector enhancement protector use materials and hot melt temperature filler shall

be not less than 120 °C, thermal softening temperature shall be not less than 90 °C, can be used in

a 25 ~+40°C temperature.

3all materials should be non-toxic, non corrosive, on human health and other equipment element

side effects.

The appearance shall complete shape, no burr, no bubbles, no cracks and voids, warping, impurity

defects. All the background color should be uniformly continuous. Beautiful appearance and

convenient construction, low attenuation loss, reasonable structure, reinforced core is fixed in

the terminal box, the sheath has ground wire, suitable for fiber optic ribbon cable and indoor cable.

Unique design,19 inch rack or wall mount.





Mechanical properties



Tensile strength: should withstand axial tensile strength not less than 500N between cable terminal

box and the cable, and not less than 5N between wiring pigtail and terminal box.



Compression test: cable terminal box each should be able to withstand the vertical static pressure

not less than 200N.



Twist test : cable terminal box should be able to withstand the torsion angle.





Electrical properties

Fiber optic cable box metal component and cable metal strengthening core, cable metal components and the ground insulation resistance

insulation resistance:

should be no less than 2*104M ohm, test voltage:500V (DC).

 voltage strength:

no breakdown, no arc phenomenon at 15Kv DC under 1min, no breakdown, no arc phenomenon.
