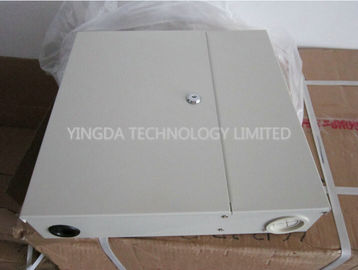

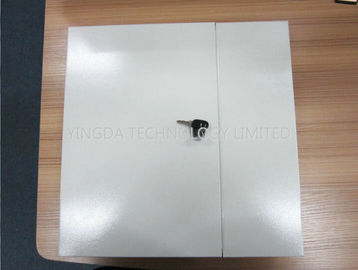

2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | cold rolled steel | color | white |
---|---|---|---|
capacity | 12 Cores | adapter | FC SC ST LC |
cable ports | 4 pcs | application | FTTH FTTX FTTB ODN PON network |
dimension | 350*300*80mm | thickness | 1.0mm |
fiber type | singlemode, multimode | installation | wall mount |
doors | 2 pcs with key | ||
แสงสูง | fiber optic terminal box,fiber optic junction box |
2 Doors ODN PON Fiber Optic Termination Box, Wall Mount Terminal Box With Key
Sell point:
- Wall mounting metal box,not plastic, can use long and high strength function
- 2 Doors open with key, safe guarantee
- can install 12 Fibers pigtail and 12 pcs SC adapters inside
- MOQ: 50PCS
- customer logo,label is available
Outdoor wall mount optical fiber distribution box is distribution equipment to connect,protect and
management the fiber and cable in fiber optic communication networ. It consist of termination
access module and rack.
This terminal box e can realize the optical fiber fixed, ground protection, optical fiber connection,
rational distribution, redundant fiber coiling, distribution scheduling and other functions.
Features
1. Available for small capacity communication system,wall mounting,reasonable and compact structure,
harmonized with machine room

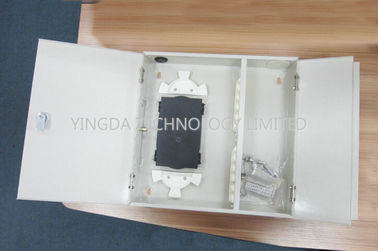

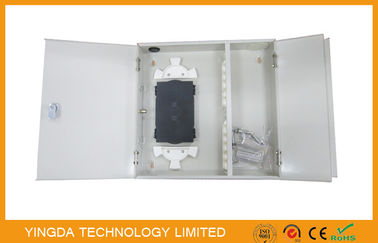

2. The cabinet is composed of two parts,one links with optical cables for fusion connection
between optical cable and fiber pigtail and another links with patch cord.
3. Provide fusion and storage for optical cables
4. Reliable protection appliance of fixing,stripping and earthing for optical cables.
5. Whole range protected design for fiber lay to ensure the bending radius=40mm
6. Provide various accessories to avoid any unexpected damage to the fiber
7. 1U max hold 12 core SC/FC/ST (24 pcs duplex port LC or MT-RJ) optical fiber connector;
8. Closed management;
9. All front operation, quick and convenient to install
Specification
Type |
Dimension (mm) |
Max capacity (core) |
Carton size (mm) |
GW. (kg) |
Qty/carton (pc) |
GP(05)C-FC12 |
350*300*80 |
12 |
405*355*605 |
19.5 |
5 |
GP(05)C-SC12 |
350*300*80 |
12 |
405*355*605 |
19.5 |
5 |
Note:
Cold rolled steel sheet,electrostatic spraying.
Available for 12pcs adapters FC,ST,SC,LC
Wall mount
max capactiy: 12 Fibers only
