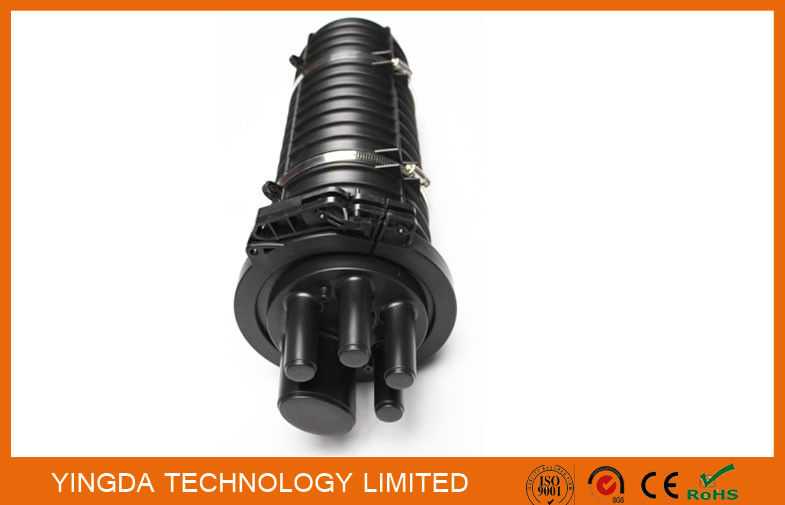

Dome Fiber Optic Splice Closure
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xshape | Dome / vertical | max capacity | 96 fibers |
---|---|---|---|
cable port | 1 oval + 4 round port | cable diameter | Φ10mm~Φ25 mm |
material | PP body + ABS tray | splice tray qty | max. 4 pcs |
closure dimension | 540x180 mm | weight | 3.5 kgs |
carton qty | 6 pcs | carton size | 60*49.5*61mm |
sealing method | heat srhinkable tube | waterproof class | IP68 |
แสงสูง | fiber optic joint closure,outdoor splice box |
48 Fibers Dome Fiber Optic Splice Closure,Pole Mount Jounction Box Closure
Equal to TYCO FOSC 400B4
Features:
- May be used for cut, uncut and taut sheath applications.
- May be used for all fiber optic cable.
- Sheath retention & central strength member termination system included.
- Ribbed closure construction-lightweight plastic offers strength and resistance
- to chemical and U.V attack
- Installation and reentry with a minimum of tools
- All hardware are captivated
Application
- Underground, Aerial, Vault, Pole Mounting and Wall Mounting
Specification
Model No |
Max capacity (single fusion) |
Splice tray |
Size (Hx D) |
Cable ports |
Max cable diameter |
YDSC-JB102A |
96 fiber (4x24) |
Tray JB102A Capacity:24 fiber |
540x180mm |
1 oval port + 4round ports |
1 oval ports for 1 loop(uncut) cable with max ¢25mm.; 4 round ports,each port for 1 cable with max ¢19mm |
YDSC-JB102B |
Tray JB102B Capacity:24 fiber |
Standard accessories
Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,
buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,
1 set of Oval port closing kits:
Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper
(2.5 x30mm)+ branching clip etc
4 sets of Round port closing kits:
Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc
Optional accessories
Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve
Order information:
YDSC-JB102X-XX-XX-X
YDSC-JB102(A,B)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)
-accessories(S=standard;O=optional,on customer request)
