MTP MPO Trunk Cable
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO SGS ROHS |
หมายเลขรุ่น | MTPf-12FC-OS1-02-09 |
จำนวนสั่งซื้อขั้นต่ำ | 100 pcs |
ราคา | negotiable |
รายละเอียดการบรรจุ | 1 pc/ box, 160 pcs/carton box |
เวลาการส่งมอบ | 7days after payment |
เงื่อนไขการชำระเงิน | Western Union, T/T |
สามารถในการผลิต | 10,000 pcs per month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xconnector | MPO male | fiber type | OS1 SM multi-fiber cable |
---|---|---|---|
Cable type | multi-fiber Ribbon cable | fiber count | 12 Fiber FC |
Insertion loss | <0.3dB | package | Vacuum / plastic packing |
แสงสูง | MPO fanout cable,mpo patch cable |

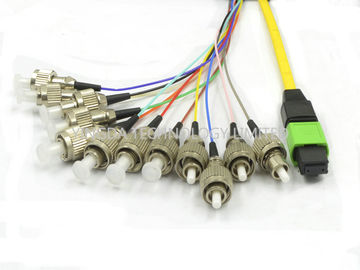

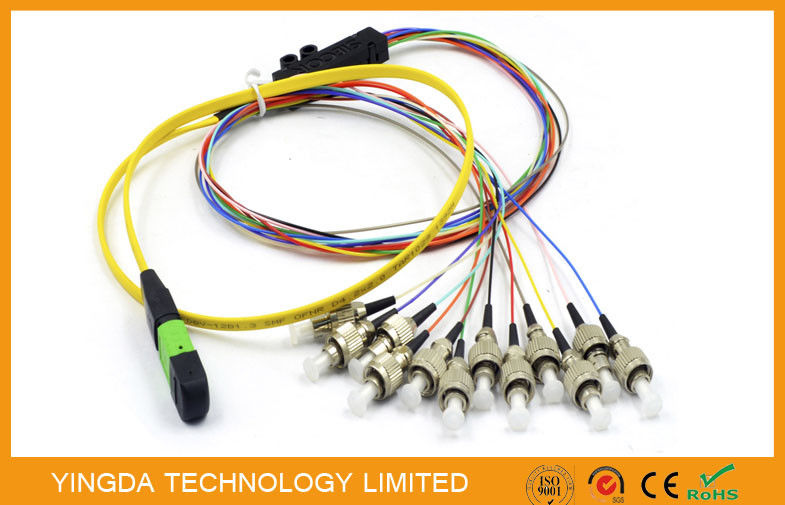

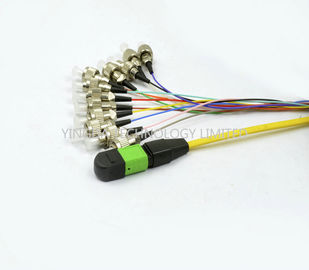

MPO - FC Fanout Trunk Cable MTP MPO Cable Ribbon SM 0.9mm 12 Fibers
MPO fiber optic patch cord is composed of high precision connectors and cables, suitable for
telecommunication system high density network connectivity solutions. The outside of the
connector is precise plastic parts, including push and pull plug locking mechanism, precise
PIN needle to ensure accurate matching. Generally use 4 core, 8 core, 12 core optical fiber
ribbon cable. MPO optical fiber jumper has high accuracy ferrule and high quality optical
fiber cable, carefully manufactured by our company's unique grinding technology, the ferrule
end face have both type: PC and APC. It also has high precise MPO adapter, low insertion
loss, which ensures long-term optical stability and mechanical properties.
Features
- Comply with G5982 & IEC61754 - JIS
- multi core optical fiber connector
- Mult-fiber termination of 4f, 8F, 12F & 24F fibers
- precision multi core inserted chip of Precision Multifiber MT Femule
- pushpulll locking Push-pull latching
- can choose male / female joint Male and Female connector type
- can choose a ribbon cable and micro cable
- Bare & Ruggedized Ribbon and Mic round cable
Technical Specification
MPO/MTP Connector |
Standard SM MT Ferrule |
Low Loss(Elite) SM MT Ferrule |
Standard MM MT Ferrule |
Low Loss MM MT Ferrule |
|
Insertion Loss |
Typical (dB) |
0.35 |
0.20 |
0.35 |
0.20 |
Maximum (dB) |
0.75 |
0.35 |
0.60 |
0.35 |
|
Return Loss (dB) |
≥50 for APC(8 Angle Polish) |
≥20 for PC |
|||
≥35 for PC |
… |
||||
Male/Female |
Mate:With Pins,Female:Without Pins |
||||
Exchange abilty (dB) |
≤0.3(Connect Randomly) |
||||
Tensile Strength (dB) |
≤0.3(Max 66N) |
||||
Vibration (dB) |
≤0.3(10-55Hz) |
||||
Temp Range (dB) |
≤0.3(-40~75℃,42Cycles) |
Ordering Information
MPO-male/APC/12F-FC/UPC/SM/Φ0.9-L/L1-RJ
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩
① |
Connector Type 1# |
MPO-female, MPO-male |
② |
End face |
APC,PC |
③ |
Fiber Count |
4,8,12 & 24 MT Fibers |
④ |
Connector Type 2# |
MPO/female*,MPO-male,FC,SC,ST,MU,LC,E2000 |
⑤ |
End face 2# |
PC,UPC,APC |
⑥ |
Fiber Mode |
SM=Single Mode,MM=Multi Mode(50,62.5,OM2,OM3,OM4) |
⑦ |
Pigtail Diameter |
Φ2,Φ0.9 |
⑧ |
Cable Length |
L=1,2,3,4… Meter |
⑨ |
Pigtail Length |
L1=0.5,0.6,1.0 Meter |
⑩ |
Temp Range |
RJ:Jacket Ribbon Cable,RB:Bare Ribbon Cable,MC:250um mini round cable |
