Field Installable Connector SC LC FC ST

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น YD-FIC-SCU-D
จำนวนสั่งซื้อขั้นต่ำ 500PCS
ราคา Negotiable
รายละเอียดการบรรจุ 10pcs / blister box,1200pcs / carton box
เวลาการส่งมอบ 3-5 working days after get payment
เงื่อนไขการชำระเงิน T/T or western Union
สามารถในการผลิต 10,000pcs per day

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
แสงสูง

mechanical splicer

,

FTTH connector

ฝากข้อความ
รายละเอียดสินค้า

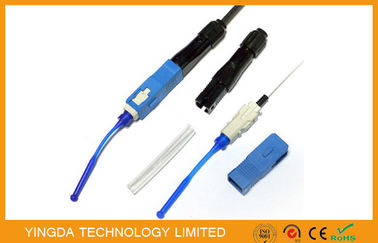

Fiber Optic Quick Connector SC, Field Installable Connector SC LC FC ST





Sell point:



1. pre-polished and curing ceramic ferrule

2. pre-embedded fiber optic fiber G657A1 G652D, G657A2

3. Length: 62 mm (boot to the top of the dust cap )

4. Cable stripper length: 22mm / 10mm

5.  SC/APC,SC/UPC,LC/UPC,LC/APC,FC/UPC can be choose

6. fast connector tools: fiber cable coat stripper, drop cable stripper, alcohol, guideway, fiber cleaver

7. spare parts: each 10sets or 100sets will offer:

             1xguideway tool +10x dust cleaner wippers+1x english user manual.





Description



SC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector,

most people call it fast connector for short. It is a kind of connector, it is used in field wiring

operation and FTTH projectwhere need fast and stable connection. Because it has embedded

fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus

offer quicker help to installation, maintenance,repair and fiber to the home for engineers.



The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face

good quality, and effectively protect the user equipment interface from damage, reduce

the connection attenuation loss.





Features



1. Can be used as a connector and attenuator

2. Can made any length of fiber optic patch cord on-site

3. On-site installation, simple and quick operation, only 2 minutes

4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process

5. Do not need hot melt, save power supply

6. High performance, good reliability

7. Mechanical and environmental performance conforms to GR-326-CORE standard.



 Specification



Applicable for

3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable

Optical fiber diameter

125um (G652D,G657A1,G657A2)

Tight butter diameter

250um

Fiber mode

Single mode

Operation time

About 60s (no fiber cut)

Insertion loss

≤0.3dB(1310nm &1550nm)

Return loss

≤-40dB

Fastening strength of naked fiber

>5N

Fastening strength of naked fiber holder

>10N

Tensile strength

>50N

Using temperature

-45~+80℃

On-line tensile strength(20N)

△IL≤0.2dB △RL≤5dB

Mechanical durability(500times)

△IL≤0.2dB △RL≤5dB

Drop-off test

(drop-off height 4m,

once per direction,totally 3times)

△IL≤0.2dB △RL≤5dB





Application

  1. Fiber Optic Test
  2. Fiber Optic Distribution Frame use
  3. FTTH network
  4. CATV / LAN network
  5. Fiber Optic Telecommunication system
  6. Fiber Data Transmission network



Order information

  1. Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
  2. Cable type: drop cable , indoor cable 0.9mm, 2.0mm
  3. Connector color: Blue,Green, Black
  4. Fiber type: G652D, G657A1, G657A2


Fast Connector connect with drop cable  then can do patch cord as below:

Field Installable Connector SC LC FC ST 0Field Installable Connector SC LC FC ST 1
