Fiber optic Tool Kits Cable Stripper
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

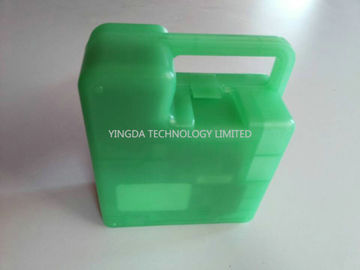

xpackage | green plastic box | color | black |
---|---|---|---|
แสงสูง | fiber optic tool kits,fiber polishing film |

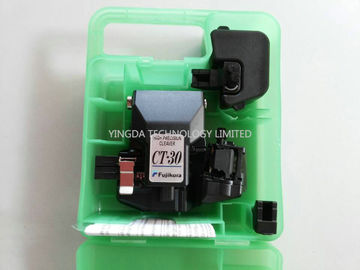

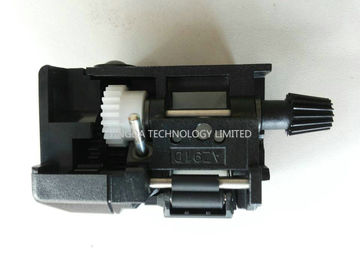

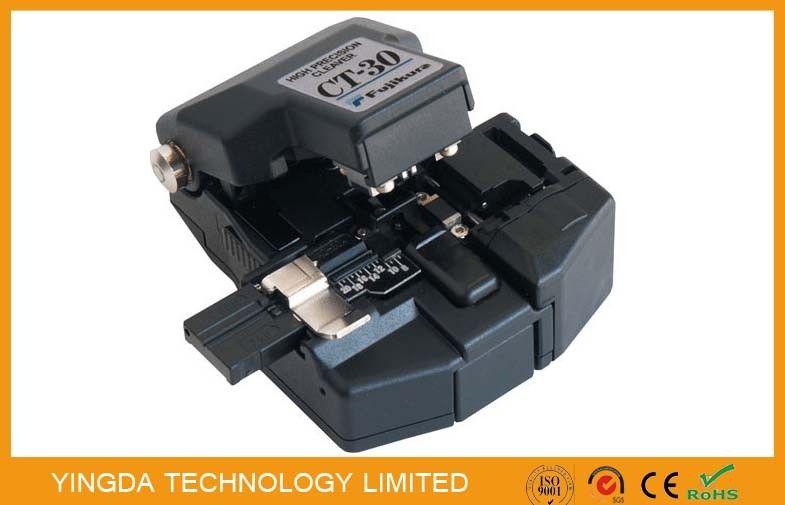

Fiber Tool Kits Fujikura CT-30 CT-30A High Precision Fiber Cleaver Cable Stripper
The CT-30 Cleaver sets the standard for portable, reliable and ease of use. Available
for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the CT-30
Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for
excellent portability, the CT-30 is equally at home in a splicing van or in a bucket truck
and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,
or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap
collector conveniently stores fiber shards until they can be safely discarded.
Technical specifications:
- Fiber: silicon optical fiber, optical fiber
- Cutting naked fiber diameter: 125 m
- Optical fiber coating diameter: 250~900 M
- Cutting angle: 0.5 degrees (single core fiber)
- Cutting blade life: 48000 times (1000 times* 16 times rotate the blade* 3 height)
- Size / weight: 102W * 82D * 46H (mm) / 210g (contain large capacity optical fiber residue collector)
Application
- Telecommunications Engineering and repair
- CATV engineering and maintenance
- Optical cable manufacturers
Specification
Applicable fibers |
Silica optical fiber |
Bare fiber diameter |
125mm |
Cleaving angle |
0.5 degrees with single fiber |
Blade life |
48,000 fibers (1,000 fibers x 3 height x 16 positions) |
Blade positions |
3 height and 16 rotating positions |
Dimensions |
102W x 82D x 46H (mm) with FC-02 and FDB-03 |
Weight |
210g with FC-02 and FDB-03 |
Order information
Model |
Cladding diameter |
Fiber count |
Cleaving length |
Fiber placing |
CT-30 |
125mm |
Up to 12 fiber |
10mm |
Fiber holder |
CT-30A |
125mm |
Single fiber |
6 to 20mm |
Fiber plate (AD-30A) |
CT-30B |
125mm |
Single fiber |
16mm |
Fiber plat |
