Outdoor CATV Base Station Patch Cord FTTH Drop Cable 7.0mm PE Sheath Tight Buffered Cable
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xouter sheath | PE, TPU,LSZH | outer sheath color | black |
---|---|---|---|
cable diameter | 7.0mm | fiber count | 2 core |
weight | 42 kg/km | Fiber type | single-mode,multimode |
applicatoin | patch cord or CATV inline or vertical wiring | Tensile strength | 400N |
แสงสูง | ftth drop cable,fiber optic drop cable |

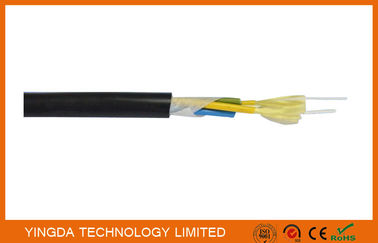

GJFJV-LY Outdoor CATV Base Station Patch Cord Remote Cable 7.0mm Tight Buffer PE Sheath
Description
Base station remote cable use the single-core optical fiber cable (900um tight set of fiber,
Kevlar to strengthen components) as a child, and stranded as fill line wrapped into cable
core is squeezing out of the cable core forming a layer of PVC or LSZH sheath.
Application
◆Mainly used in wireless base station(BS) horizontal and vertical cabling.
Cable Structure
Technical parameters
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
||||||||||||
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
||||||||||||||
LYC-02 |
2 |
7.0 |
42 |
200 |
400 |
600 |
1500 |
20D |
10D |
-20~+60 |
|||||||||
|
|||||||||||||||||||
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
|||||||||||
Jacket material |
PE |
LSZH |
TPU |
||||||||||||||||
Features |
|||||||||||||||||||
Multi-mode fiber optic cable sheath color: black |
|||||||||||||||||||
Other contracted color |
