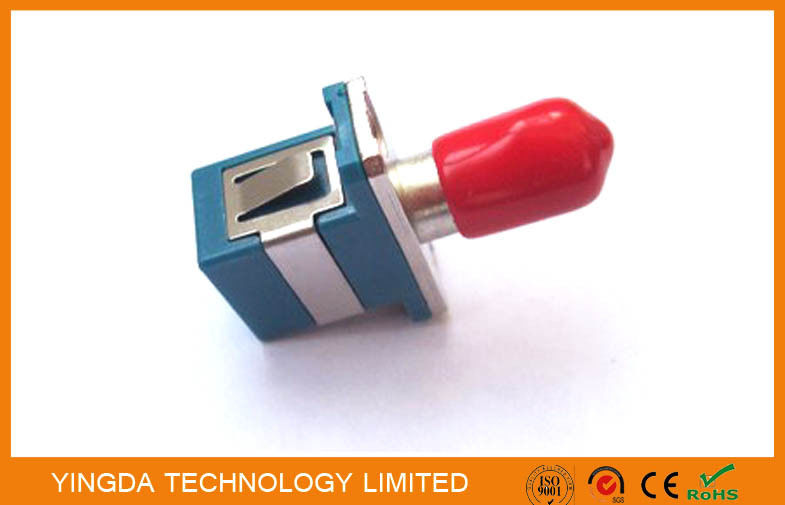

Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | Metal, plastic | dust cap color | red. black |
---|---|---|---|
type | hybrid adapter | weight | 12g |
Fiber type | single-mode, multimode | sleeve material | ceramic |
แสงสูง | fiber optic coupler,bare fiber adapter |
Multimode Hybrid Fiber Optic Adapter SC - ST Connector With Ceramic Sleeve
Description:
ST/SC Hybrid adapter can connect SC and ST both connectors on both ends,and provides APC end
face connection. Duplex or multiple adapter can improve the density of installation, save a space.
Fiber adaptor is one kind of fiber flange. It is mainly used for interconnecting two fiber connectors.
Both UPC and APC polishing mode are available.For interconnecting various connectors, fiber
connector can be divided into 2 kinds, mating sleeve and hybrid adaptor.
Features
- Easy to use
- Can be embedded in any termination box, splicing tray and etc.
- Both simplex and duplex type is available
- Both UPC and APC polishing mode is available
- FC to ST adaptor
- Using metal material makes it firm and durable
- Zirconia internal tube ensures a low insertion loss
Specification
Insertion loss |
≤0.2dB |
Insert-pull test |
1000 times |
Repeat ability |
≤0.1dB |
Tensile strength |
≥10kg |
Operating temperature |
-40°C~85°C |
Sleeve materials |
Ceramic or Metal |
Standard |
Bellcore TA-NWT-001209 |
Storage temperature |
-40°C~85°C |
SPECIFICATIONS
Insertion Loss |
<0.20 dB |
Plug and unplug force |
200-600(g/f) |
Durability |
plug and unplug 1000times |
Operating Temperature |
-40+85°C |
Order information
Housing Material |
Sleeve Material |
Channel |
zinc alloy |
Ceramic |
Simplex |
Plastic |
Phosphor bronze |
duplex |
We can offer all kinds of fiber optic adapters,100% test before delivery:
