144Cores การต่อสายไฟเบอร์ออปติก, ปลั๊กสายไฟเบอร์ออปติกพิเศษ PP 6 ชิ้น
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xความจุ | 144Cores / Fibres | วัสดุ | pp |
---|---|---|---|
พอร์ตสายเคเบิล | 1 รี + 4 พอร์ตรอบ | สี | สีดำ |
ปิดผนึก | ความร้อนหดท่อประทับตรา | ตะแกรงถัก | 6 ชิ้น |
มิติ | 450x230 มม | เส้นผ่าศูนย์กลางสายเคเบิล | 8-24mm |
แสงสูง | fiber optic splice enclosure,fiber optic joint closure |

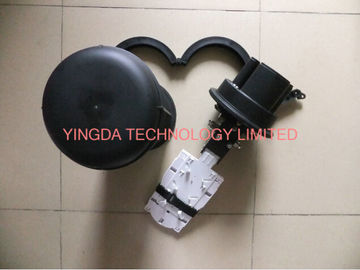

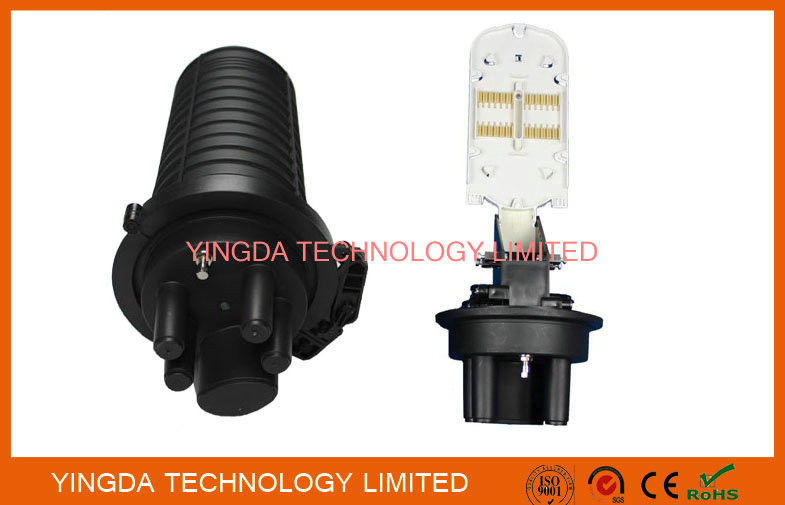

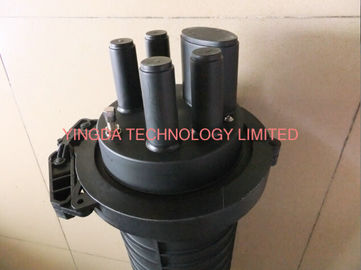

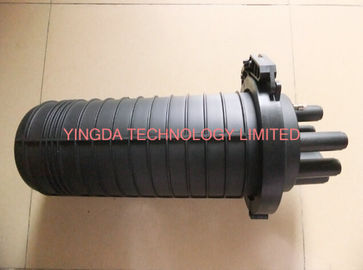

Aerial PP Dome Vertical Fiber Optic Splice Closure FOSC 204 144 Cores Fibers
Features
- May be used for cut, uncut and taut sheath applications.
- May be used for all fiber optic cable.
- Sheath retention & central strength member termination system included.
- Ribbed closure construction-lightweight plastic offers strength and
- resistance to chemical and U.V attack
- Installation and reentry with a minimum of tools
- All hardware are captivated
- Closure can be flash tested
- Protection class: IP68
- ROHS compliance
Application
- Underground, Aerial, Vault, Pole Mounting and Wall Mounting
Specification
Model No |
Max capacity (single fusion) |
Splice tray |
Size (Hx D) |
Cable ports |
Max cable diameter |
FOSC-204A |
144 fiber (6x24) |
Tray 204A Capacity:24 fiber |
450x230 mm |
1 oval port + 4 round ports |
1 oval port for 1 looped cable with max:24mm. 4round ports , each port for 1cable with max:17.5mm |
FOSC-204B |
144 fiber (6x24) |
Tray 204B Capacity:24 fiber |
Standard accessories
Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,
buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,
1 set of Oval port closing kits:
Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper(2.5 x30mm)
+ 2 bags cleaning tissue+ branching clip etc
4 sets of Round port closing kits:
Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)+sand paper etc
Optional accessories
- Pole Mounting kit,Aerial mounting kit Grounding device,Air valve
Order information:
FOSC-204X-XX-XX-X
FOSC-204(A,B,C)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)-accessories(S=standard;O=optional,on customer request)
