ABS Platic Box Optical Fiber Splitter , PLanar Lightwave Circuit Splitter Module FC 1.5M
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xconnector | FC/UPC | fiber type | single mode G657A1 |
---|---|---|---|
insertion loss | 7.3/7.0dB | Uniformity (Max.) | 1.5dB |
wavelength | 1260 - 1650 nm | PDL(Max.) | 0.2dB |
Module size | 100×80×10mm | square tube size | 40×4×4mm |
flat tube size | 60×7×4mm | ||
แสงสูง | ตัวแยกสัญญาณไฟเบอร์ออปติก,plc splitter |

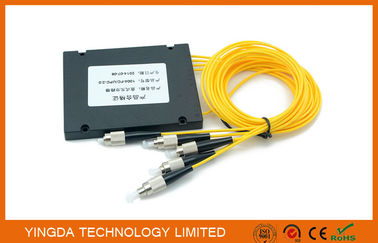

1x4 PLC Splitter ABS Platic Box, PLanar Lightwave Circuit (PLC) Splitter Module FC 1.5M
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is
fabricated using silica optical waveguide technology. It features small size, high reliability,
wide operating wavelength range and good channel-to-channel uniformity, and is widely used
in PON networks to realize optical signal power splitting.
YINGDA provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.
All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
- Low Insertion Loss
- Low PDL
- High Isolation
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength
- High Reliability and Stability
Applications
- FTTH
- PON Network
- CATV Links
- Communication Equipment
Specification
Operating Wavelength(nm) |
1260~1650 |
||||
Fiber Type |
G657A1 or as customers' order |
||||
Port Configuration |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
Insertion Loss (dB) |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
Loss Uniformity (dB) |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
Temperature Dependent Loss (-40~85 ) (dB) |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
Return Loss (dB) |
55/50 |
||||
Operating Temperature |
-40~+85 |
||||
Directivity (dB) |
≥ 55 |
||||
Storage Temperature |
-40~+85 |
Table 2 – 2×N PLC Splitter
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
Operating Wavelength (nm) |
1260~1650 |
||||
Fiber Type |
SMF-28e or customer specified |
||||
Insertion Loss (dB) |
4.2 |
7.6 |
11.0 |
14.5 |
17.5 |
Loss Uniformity (dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
Return Loss (dB) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
Polarization Dependent |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
Temperature Stability |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
Operating Temperature (°C) |
-40~85 |
||||
Storage Temperature (°C) |
-40~85 |
||||
Module Dimension (mm) |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
Notes:
- Specified without connectors.
- Add an additional 0.2dB loss per connector.
