GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO SGS ROHS
หมายเลขรุ่น YD-PLC-LG-108-SC-10
จำนวนสั่งซื้อขั้นต่ำ 50 pcs
ราคา negotiable
รายละเอียดการบรรจุ 1PC/BOX
เวลาการส่งมอบ 5-8days after payment
สามารถในการผลิต 10,000 pcs per month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
connector FC SC LC ST all ok fiber type2 G657A1, G652D corning fiber SMF-28e
insertion loss 10.2 / 10.5 dB Uniformity (Max.) 1.5 dB
wavelength 1310/1550nm PDL(Max.) 0.2 dB
dimension 130*110*25mm Fiber length 1meter
cable diameter 2.0mm,0.9mm
แสงสูง

ตัวแยกสัญญาณไฟเบอร์ออปติก

,

fbt coupler

ฝากข้อความ
รายละเอียดสินค้า

GPON Network 1:8 PLC Optical Splitter LGX Aluminum 2 Slot Cassette Chassis





Yingda provides a high precise PLC splitter for the construction of optical network. Low requirements

of placing position and environment, compact insertion module type design. It is small enough to place

in indoor terminal box and ODF frame or optical fiber distribution box directly. PLC optical splitter offers

uniform power splitting with low insertion loss, low PDL and high return loss. User can customize the

optical splitting ratio for every output channel. The range of the working wavelength is from 1260nm

to 1650nm.





Features:


♦  Compact size design

♦  Low insertion loss and low PDL

♦  High reliability

♦  High channel counts

♦  Wide wavelength range

♦  Large operating temperature range

♦  Customized packaging and configuration

♦  Full Telcordia GR1209/1221 qualifications



Specifications:



1×N(N>2) (With connector) Optical parameters:



parameters

1×4

1×8

1×16

1×32

1

Operation wavelength(nm)

1260~1650

2

Insertion loss(dB)

Max

7.4

10.7

13.7

16.9

3

Return loss(dB)

Max

0.6

0.8

1.2

1.7

4

Return loss(dB)

Min

55

55

55

55

5

PLD(dB)

Max

0.2

0.3

0.3

0.3

6

Directivity(dB)

Min

55

55

55

55

7

Wavelength dependent loss(dB)

0.4

0.4

0.5

0.5

8

Pigtail length(m)

1.2(±0.1) or customer specified

9

Fiber type

250μm bare fiber

10

Operation temperature(°C)

-40~85

11

Storage temperature(°C)

-40~85

12

Packaging Size(L×W×H) (mm)

40×4×4

40×4×4

40×4×4

50×7×4



1

Operation wavelength(nm)

1260~1650

2

Return loss(dB)

APC min

55

UPC min

50

3

Directivity(dB)

Min

55

4

Pigtail length(m)

1.0(±0.1) or customer specified

5

Fiber type

Customization

6

Operation temperature(°C)

-20~65

7

Storage temperature(°C)

-40~85



Note: All measurement were done at room temperature and specification include connectors.





2×N(N>2)PLCS(Without connector) Optical parameters:



parameters

2×4

2×8

2×16

2×32

1

Operation

wavelength(nm)

1260~1650

2

Insertion loss(dB)

Max

7.8

11.2

14.2

17.4

3

Loss uniformity(dB)

Max

1.2

1.5

1.8

2.0

4

Return loss(dB)

Min

55

55

55

55

5

PLD(dB)

Max

0.2

0.3

0.4

0.4

6

Directivity(dB)

Min

55

55

55

55

7

Wavelength dependent loss(dB)

0.4

0.4

0.5

0.5

8

Pigtail length(m)

1.2(±0.1) or customer specified

9

Fiber type

Cusomization

10

Operation temperature(°C)

-40~85

11

Storage temperature(°C)

-40~85

12

Dimension (L×W×H) (mm)

50×4×4

50×4×4

60×7×4

60×7×4



Note: All measurement were done at room temperature and specification include connectors.





Application

  1. FTTX Systems
  2. PON Networks
  3. CATV Links
  4. Optical Signal Distribution

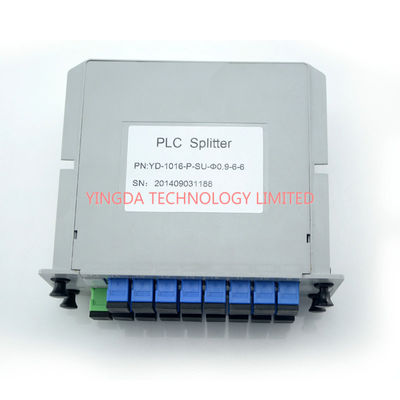

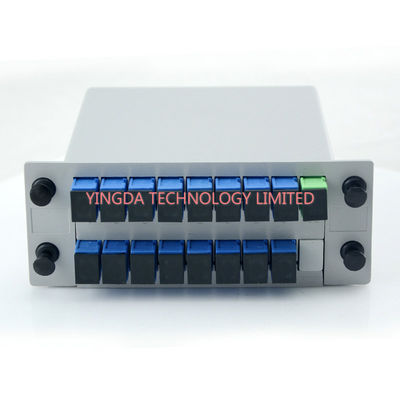

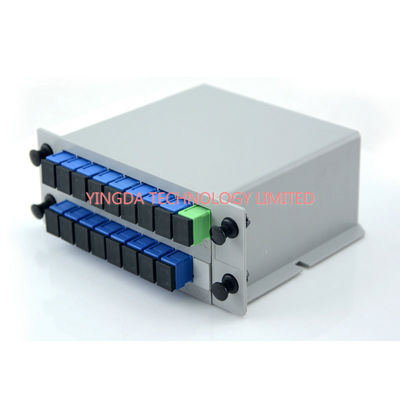

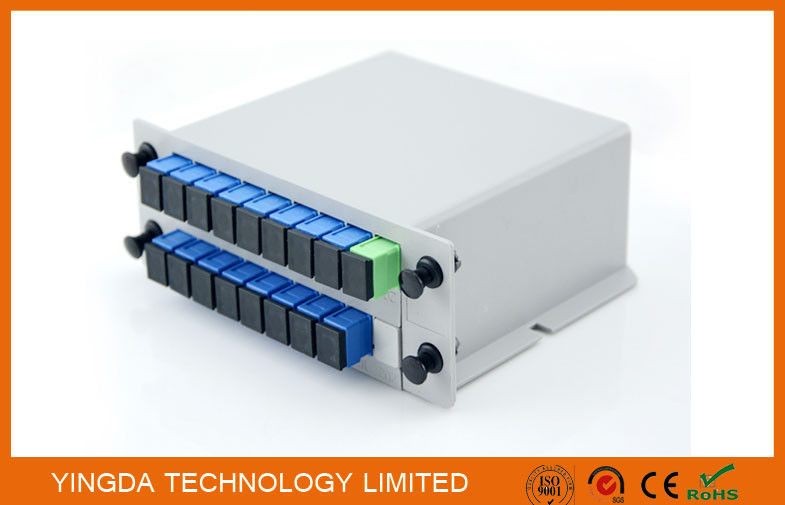

GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis 0GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis 1GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis 2GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis 3GPON Network PLC Optical Fiber LGX Splitter Aluminum 2 Slot Cassette Chassis 4
