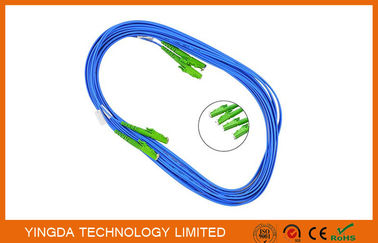

E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO SGS ROHS
หมายเลขรุ่น YDPC-E2A-DX-03
จำนวนสั่งซื้อขั้นต่ำ 500 pcs
ราคา negotiable
รายละเอียดการบรรจุ 1 pc / plastic bag
เวลาการส่งมอบ 5-8days after payment
สามารถในการผลิต 15,000 pcs / day

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
connector E2000/APC fiber count duplex
insertion loss < 0.3 dB return loss > 55 dB
Fiber length 1meter cable diameter 0.9,2.0,3.0mm
cable color blue connector color green
แสงสูง

fiber optic jumper

,

multimode patch cord

ฝากข้อความ
รายละเอียดสินค้า

E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH



Features

  • Full steel armoured protection from ceramic ferrule
  • High tensile resistance & anti-pressure
  • Strong anti- ultraviolet radiation
  • High flexibility



Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

Fiber optic patchcord are used for linking the equipment and components in the fiber optic network ,

they are with various kinds of fiber optic connector types. the fiber optic patch cord types are classfied

by the fiber optic connector types.for example,we name LC fiber optic patch cord because this cable is

with LC fiber optic connector.there are PC,UPC,APC type fiber patch cord, they are different because

of the polish of fiber connectors.

Fiber optic patch cord are with various kinds of cables,PVC, Riser, Plenum, OFNR,OFNP,LSZH (LSOH),

10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber

cable assemblies,and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable

assemblies.Typical fiber optic patch cord cable diameter can be 0.9mm,2mm,or 3mm.







Application

  1. FTTH
  2. Defense communications
  3. Outdoor Emergency
  4. Buildings without protective cabling



Specification



Jacket

Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC

Diameter

0.9mm (9/125um), 1.6mm, 1.8mm, 2.0mm, 3.0mm

Jacket Colors

Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow

Connector

FC,SC,ST,MU,LC, D4,DIN,E2000 MT-RJ,MPO FC,SC,ST,MU, LC,SMA,E2000 MT-RJ,FDDI, MPO,ESCON

Insertion Loss (dB)

≤ 0.2 (UPC)

Exchangeability

≤ 0.2 dB

Tensile Strength

≤ 0.2 dB ( 0 to15 Kgf )

Temp. Range

(- 40 to +80 degree centigrade)

Polish

UPC APC PC

Cable type

Singlemode, multimode

Apex offset

≤50 um, ≤100 um

Fiber Spherical Height

 -90 nm , +50 nm

Angular Offset

8°± 0.5°C (APC)



E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH 0E2000 / APC - E2000 / APC Fiber Optic Patch Cord Singlemode Duplex Blue Cable LSZH 1
