Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xcolor | Gray | material | cold rolled steel |
---|---|---|---|
connector | SC/ST/FC/LC | fiber count | 4 cores |
size | 140*105*28 mm | cable port | 1port, can open another on demand |
cable diameter | 5~10mm | ||
แสงสูง | fiber optic terminal box,fiber optic distribution box |

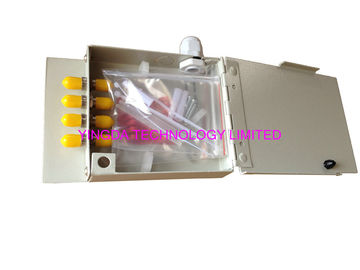

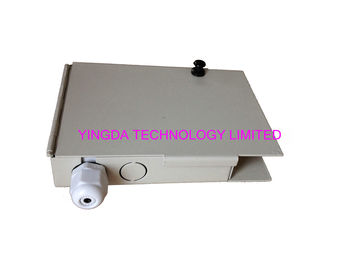

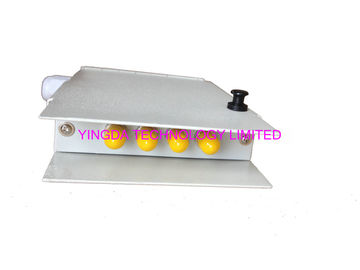

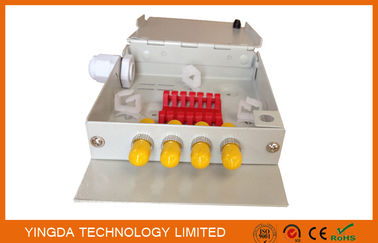

Indoor 4 Port FTTH Fiber Termination Box, 4 Cores ST Fiber Optic Splice Box Cold Rolled Steel
Model: FTB104 - ST
FTB104 fiber optic termination box is widely used in the end termination of residential buildings and villas to fix and splice with pigtails.
Features
- Cold rolled steel, gray color
- small size,light weight,good appearance
- wall mounted with mechanical protection function
- max fiber capacity 4fibers,4 adapter output
- available for 4pcs FC,SC,ST,LC adapters
- hinge and convenient press-pull button lock design
- Environmental Temperature:-25°C~40°C;
- Self-clip design,easy to operate
- sample is ok
Specifications
Item | FTB 104 | FTB 108 | FTB 116 |
Size(H*W*D)mm | 140*105*28 | 200*148*30 | 245*200*48 |
Cable diameter(mm) | 5~10 | ||
Cable ports | 1pc | 2pcs | 3pcs |
Max capacity of splice | 4 cores | 8 cores | 16 cores |
Kit content
Splice protectin sleeve | 60 mm | 4 pcs |
Cable ties | 60 mm | 10 pcs |
Installation nails | Bolt | 3-4 pcs |
Package information
Carton size | Carton weight | Carton qty |
73*32*29 cm | 22 kgs | 50 pcs |
1piece in a box, inside foam and plastic bag to protect the box. then put in shipping carton box for delivery.
If you have other request, or speical design, we can make for you.
