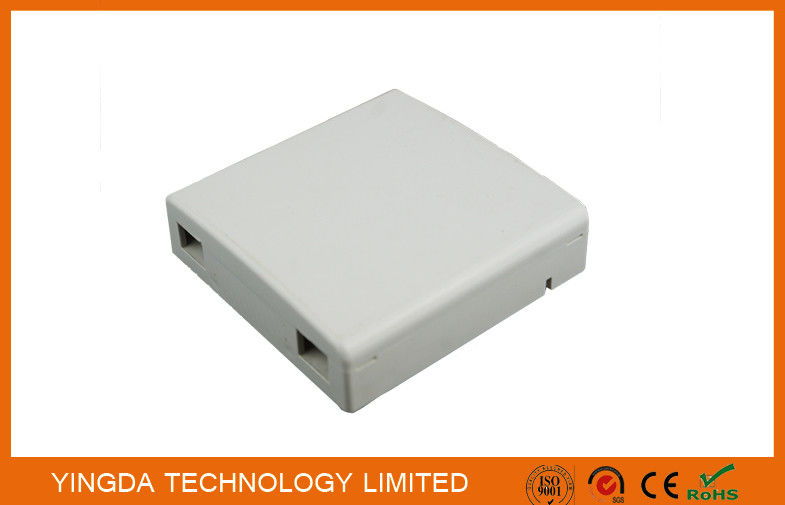

Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xcolor | white | material | plastic PC / ABS |
---|---|---|---|
connector | SC | fiber count | 2 core single fiber |
size | 86*86*23mm | cable port | 2 pcs |
แสงสูง | fiber optic terminal box,fiber optic distribution box |
Fiber Optic Cable Wall Mount Box, FTTH 86 Wall Outlet Adaptor Interface SC FC
Sell point:
- ABS plastic, fire-retartant material can be choose
- each with plastic bag,400pcs in a carton box.
- can use SC LC FC ST
- 1pc sample is for free
- adaptor and pigtail can be installed on request
- customer logo, customer label, customer shipping mark available
Description
86 Type fiber optic customer use terminal box body cover clip design greatly reduce the installation
difficulty. It is thin box body,can match with other electrical junction box panel and is suitable for light
and dark fiber optic cable wiring, also widely used in FTTH, FTTO, FTTD and other occasions.
Features:
- Embedded box frame, easy to install
- With the FC rectangle fiber adapter products, LC, SC can be used
- The large diameter cable rolling poles fully protect the fiber inside.
- The dimension conforms to 86 type box standard.
- SC simplex adapter or LC duplex adapter installed, used in the work area subsystem.
- With dust-proof device to prevent dust entering
- Equipped with identification bar, convenient numbering management and maintenance
- Product material: high quality ABS (flame retardant) material
Specification:
Cable (mm) |
3.1 x 2.0 Drop cable or indoor cable |
Fiber diameter (μm) |
125 ( 652 & 657 ) |
Cladding diameter (μm) |
250 & 900 |
Fiber mode |
Single mode, multimode |
Tensile strength (N) |
>50 |
Operating temperature (℃) |
-40~+75 |
adapter |
SC,LC,DLC |
Insertion loss (dB) |
≤ 0.2(1310nm & 1550nm) |
Working wavelength (nm) |
1310, 1550 |
Sizes (mm) |
86×27×86 |
