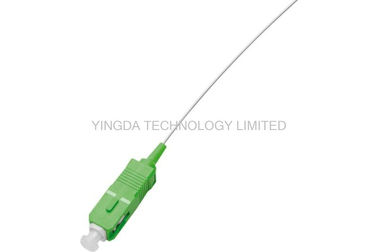

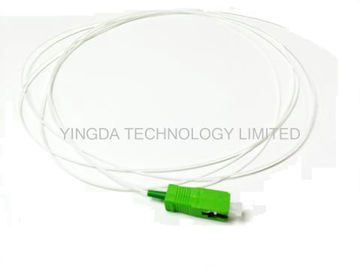

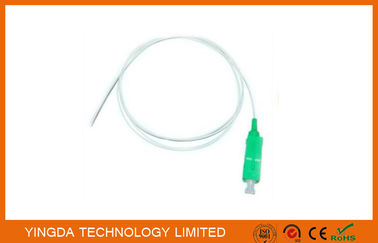

SC APC Fiber Connector OS1 OS2 9/125um 1.5 Mtrs White LSZH Simplex Optical Cable
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO SGS ROHS |
หมายเลขรุ่น | FPC-SCA-OS1-09-01-W |
จำนวนสั่งซื้อขั้นต่ำ | 500 pcs |
ราคา | negotiable |
รายละเอียดการบรรจุ | 1 pc/ bag, 1500pcs / carton box |
เวลาการส่งมอบ | 7days after payment |
เงื่อนไขการชำระเงิน | Western Union, T/T |
สามารถในการผลิต | 200,000 pcs per month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xconnector | SC APC | fiber count | simplex |
---|---|---|---|
insertion loss | < 0.2 dB | fiber type | 9/125 um G652D |
package | plastic bag | cable diameter | 0.9mm,2.0MM,1.6MM,1.8MM,3.0MM |
jacket | LSZH, pvc | connector color | white, yellow |
temperature | -40~+85°C | customer logo | yes |
wavelength | 1310nm, 1550nm | ||
แสงสูง | waterproof pigtail,ribbon pigtail |
SC APC Fiber Connector OS1 OS2 9/125um 1.5 Mtrs White LSZH Simplex Optical Cable
SC/PC is short for square card type, SC connector can plug directly,easy to use, but also easy to drop out.
SC APC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power
in the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits
of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Features
- Low Insertion Loss
- High Return Loss
- Good Repeat ability
- Good Exchange ability
- High Temperature Stability
- Comply with YD/T 1272.4-2007 specification
- 8 Degree Angled physical contact polishing (APC)
Application
- CATV network
- Optical fiber communication systems
- Optical fiber data transmission
- Building network access
- Cabling system, ODF
- FTTX networks
Specification
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
Wavelength |
1310&1550nm |
850&1300nm |
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
Max. insertion loss |
≤0.5dB |
≤0.5dB |
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
Operating temperature |
-40~+75℃ |
|
Storage temperature |
-40~+85℃ |
Ordering Information
LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: LC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
