Waterproof FTTH Fiber Optic Distribution Cable Loose Tube PE Sheath Steel Wire Cable
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xcable jacket | Black | minimum length | 10km |
---|---|---|---|
fiber count | 2 core, 4 core, 6 core, 8 core,12 cores | cable size | 3.0*4.0mm; 4.0*6.0mm |
jacket material | LSZH, PE, PVC | waterproof | yes |
Tensile(N) | long term:300N, short term: 800N | Strength member | 2 x Steel Wire |
แสงสูง | ftth drop cable,fiber optic drop cable |
Waterproof FTTH Fiber Optic Distribution Cable Loose Tube PE Sheath Steel Wire Cable
Description

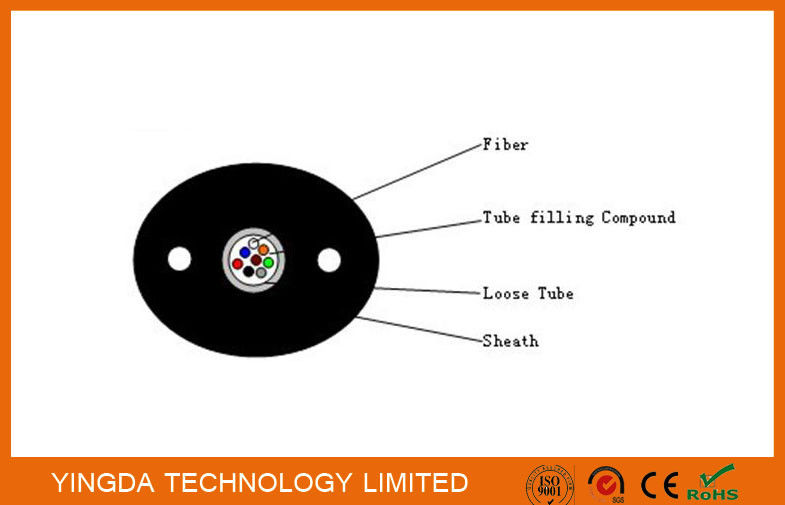

GYXTPY cable structure are 125um optical fiber in loose tube made of high modulus
materials, loose tubes filled waterproofing compounds. After two parallel steel wires
placed on both sides of extruded PE or LSZH or PVC sheathed cable.
Application
◆Mainly used for building overhead or pipes to introduce cable
Technical parameters
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
|||||||||||
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
|||||||||||||
GYXTPY-02 |
2 |
3.0*4.0 |
25 |
300 |
800 |
300 |
1000 |
20D |
10D |
-40~+70 |
||||||||
GYXTPY-04 |
4 |
3.0*4.0 |
27 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
GYXTPY-06 |
6 |
4.0*6.0 |
30 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
GYXTPY-08 |
8 |
4.0*6.0 |
33 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
GYXTPY-12 |
12 |
4.0*6.0 |
35 |
300 |
800 |
300 |
1000 |
20D |
10D |
|||||||||
|
||||||||||||||||||
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
||||||||||
Jacket material |
PE |
LSZH |
PVC |
