12 Port SC Complete Assembly Load Fiber Optic Patch Panel 19” ODF Black
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | cold rolled steel | thickness | 0.8mm,1.0mm, 1.2mm |
---|---|---|---|
capacity | 12 cores | connector port | SC simplex |
application | optical distribution frame | installatino method | rack mounted |
color | white, black | dimension | 480*200*1U mm |
แสงสูง | rack mount odf,optical distribution frame |

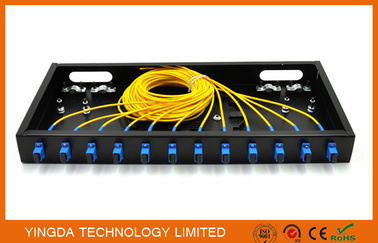

12 Port SC Completed Assembly Loaded Fiber Optic Patch Panel 19” ODF Black
Description
Rack mount patch panel is mainly used for connection and storage between optical fiber cable and
pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made
of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation
is convenient.
Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24
cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U. Adapter panel can

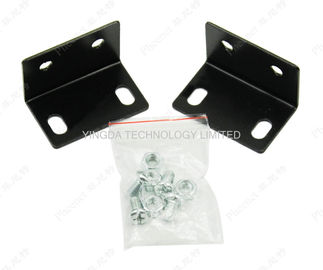

be simplex or duplex, and have ears to install in rack. It is smart design to supply firm protection
for optical cable terminal connection and optical fiber adapter installation. It is a combine of termi-
nation, protection, connection, management of fiber optic cables.
This rack mount patch panel have upper cover, when use, should un-screw the screws top side,
then take over the cover then you can manage the cable and fibers inside. Cable come inside
from back inlets, and output is adapter outlet.
Features
- Flexible standard 19” cabinet installation
- Complete front operations with double layers
- Sufficient spooling area for redundant fibers
- Spooling space available for fibers and pigtails to enhance protection for the fibers,
- pigtails and connections
- Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
- Complete bending radii protection
Technical specification:
ambient temperature |
-25℃~+40℃ |
relative humidity |
≤85%(+30℃) |
atmospheric pressure |
70kPa~106kPa |
Insulation resistance |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, the insulation resistance should > 2 x 104MΩ. |
Dielectric strength |
fiber optic cable terminal and cable metal strength member, fiber optic cable metal components itself, fiber optic cable metal components and the ground, under 15kV voltage for 1min without breakdown, no arcing phenomena. |
Order information
Model |
Dimension (mm) |
Max Capacity (cores) |
GPRP-SC12 |
480×200×1U |
12 |
GPRP-SC24 |
480×200×1U |
24 |
GPRP-SC48 |
480×200×2U |
48 |
GPRP-FC12 |
480×200×1U |
12 |
GPRP-FC24 |
480×200×1U |
24 |
GPRP-FC48 |
480×200×2U |
48 |
GPRP-ST12 |
480×200×1U |
12 |
GPRP-ST24 |
480×200×1U |
24 |
GPRP-ST48 |
480×200×2U |
48 |
When order, pls tell us below details:
1. Full complete assembly (loaded) with adapter and pigtail OR empty panel optional
2. Box color: Black , White
3. adapter port is 1 line or 2line
