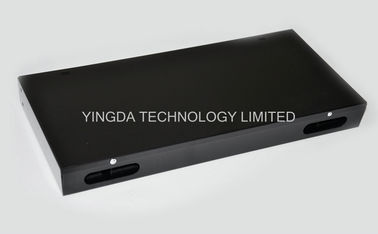

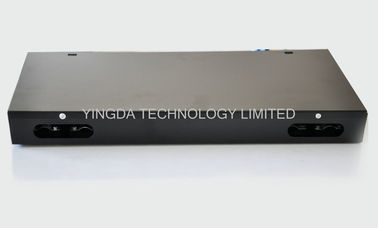

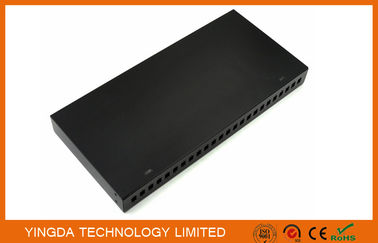

19” 24 Port Rack Patch Panel , 24 Cores SC Simplex Adapter Panel Rack Mounting Black

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น GPRP-SC24
จำนวนสั่งซื้อขั้นต่ำ 50 pcs
ราคา Negotiable
รายละเอียดการบรรจุ 1 pc / box, 5 pcs / carton box

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
material cold rolled steel thickness 0.8mm,1.0mm, 1.2mm
capacity 12 cores connector port FC or ST ( round port )
application optical distribution frame installatino method rack mounted
color white, black dimension 480*200*1U mm
แสงสูง

rack mount odf

,

sliding patch panel

ฝากข้อความ
รายละเอียดสินค้า

19” 24 Port Rack Patch Panel, 24 Cores SC Simplex Adapter Panel Rack Mounting Black





Description



19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.



Adapter panel can be simplex or duplex, and have ears to install in rack. It is smart design to supply

firm protection for optical cable terminal connection and optical fiber adapter installation. It is a combine

of termination, protection, connection, management of fiber optic cables.



Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.



Features

  • Flexible standard 19” cabinet installation
  • Complete front operations with double layers
  • Sufficient spooling area for redundant fibers
  • Spooling space available for fibers and pigtails to enhance protection for the fibers,
  • pigtails and connections
  • Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
  • Complete bending radii protection


 Technical specification:



ambient temperature

-25℃~+40℃

relative humidity

≤85%(+30℃)

atmospheric pressure

70kPa~106kPa

Insulation resistance

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, the insulation resistance

should > 2 x 104MΩ.

Dielectric strength

fiber optic cable terminal and cable metal strength member,

 fiber optic cable metal components itself, fiber optic cable

metal components and the ground, under 15kV voltage for

1min without breakdown, no arcing phenomena.



Order information



Model

Dimension (mm)

Max Capacity (cores)

GPRP-SC12

480×200×1U

12

GPRP-SC24

480×200×1U

24

GPRP-SC48

480×200×2U

48

GPRP-FC12

480×200×1U

12

GPRP-FC24

480×200×1U

24

GPRP-FC48

480×200×2U

48

GPRP-ST12

480×200×1U

12

GPRP-ST24

480×200×1U

24

GPRP-ST48

480×200×2U

48



When order, pls tell us below details:



1. Full complete assembly (loaded) with adapter and pigtail OR empty panel optional

2. Box color: Black , White
