Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น GPRP-FC24-D
จำนวนสั่งซื้อขั้นต่ำ 50 pcs
ราคา Negotiable
รายละเอียดการบรรจุ 1 pc / box, 5 pcs / carton box

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
material cold rolled steel thickness 0.8mm,1.0mm, 1.2mm
capacity 24 cores connector port FC or ST ( round port )
application 19" ODF optical distribution frame installatino method rack mount
color white, black dimension 480*200*1U mm
แสงสูง

rack mount odf

,

sliding patch panel

ฝากข้อความ
รายละเอียดสินค้า

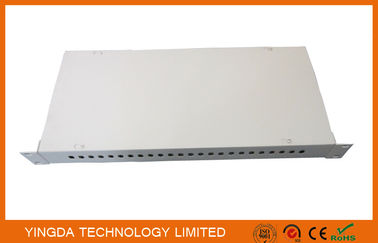

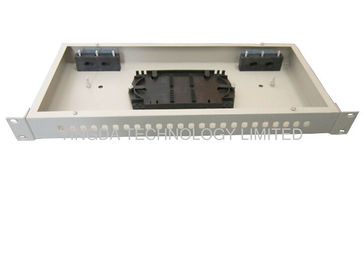

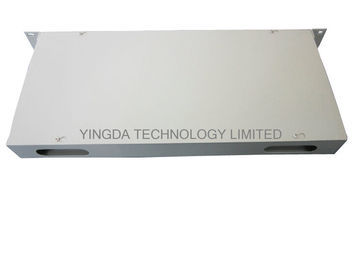

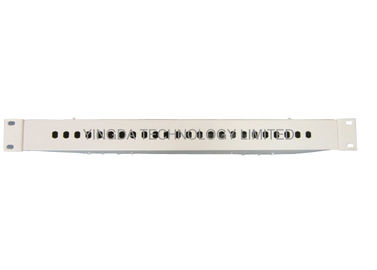

Optical Distribution Frame Rack Mounted 24 Cores FC SC LC ST Fiber Optic Patch Panel





19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.



Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U. It is smart design to

supply firm protection for optical cable terminal connection and optical fiber adapter installation.

It is a combineof termination, protection, connection, management of fiber optic cables.



Features

  • Flexible standard 19” cabinet installation
  • Adapter FC SC ST and LC available
  • Complete bending radii protection
  • Sufficient spooling area for redundant fibers
  • Enough space for fibers and pigtails to enhance fibers protection, pigtails protection and connections.



Specification



ambient temperature

-25℃~+40℃

relative humidity

≤85%(+30℃)

atmospheric pressure

70kPa~106kPa

Insulation resistance

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, the insulation resistance

should > 2 x 104MΩ.

Dielectric strength

fiber optic cable terminal and cable metal strength member,

 fiber optic cable metal components itself, fiber optic cable

metal components and the ground, under 15kV voltage for

1min without breakdown, no arcing phenomena.







Order information



Model

Dimension (mm)

Max Capacity (cores)

GPRP-SC12

480×200×1U

12

GPRP-SC24

480×200×1U

24

GPRP-SC48

480×200×2U

48

GPRP-FC12

480×200×1U

12

GPRP-FC24

480×200×1U

24

GPRP-FC48

480×200×2U

48

GPRP-ST12

480×200×1U

12

GPRP-ST24

480×200×1U

24

GPRP-ST48

480×200×2U

48



When order, pls tell us below details:



1. Complete assembly with adapter and pigtail  OR empty panel optional

2. Box color: Black , White
