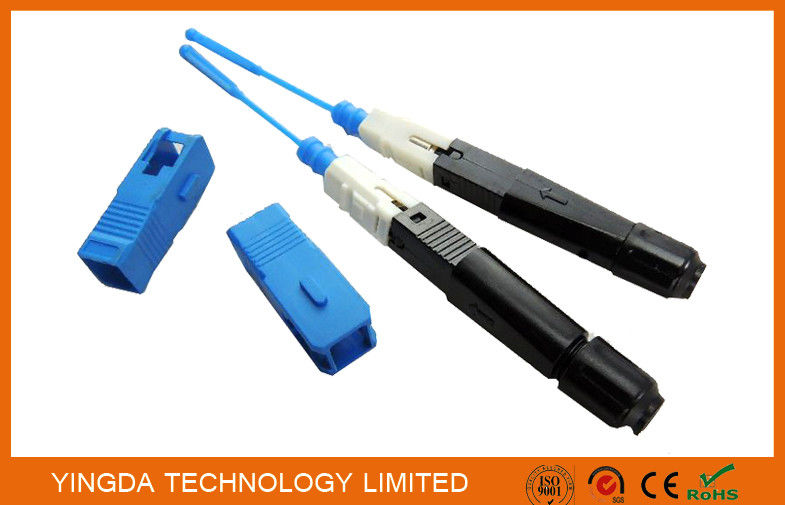

FTTH Mechanical SC / UPC Fiber Optic Fast Connector On Site Single Mode
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO |
หมายเลขรุ่น | FS-SCU-09-09B |
จำนวนสั่งซื้อขั้นต่ำ | 100 PCS |
ราคา | Negotiable |
รายละเอียดการบรรจุ | 5 pieces or 10pcs / blister box |
เวลาการส่งมอบ | 5 working days after got payment |
เงื่อนไขการชำระเงิน | T/T or western Union |
สามารถในการผลิต | 500,000pcs per month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xapplication | FTTH on site work | connector type | SC/UPC |
---|---|---|---|
fiber type | SMF-28e | cable type | single mode 9/125um |
cable diameter | 0.9mm | conneector house color | blue |
insertion loss | max. <0.5dB, Typical<0.3dB | return loss | ≥50dB |
แสงสูง | quick assembly connector,FTTH connector |
FTTH Mechanical SC / UPC Fiber Optic Fast Connector On Site Single Mode
Description
SC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point inside
the connector end, equivalently eliminate the pigtails when splicing.The advantage is no need
additional protection after splice, such as splice tray,splice closure,distribution box. In contract
to the design of mechanical splice connector, it save V-groove mechanical connector aintenance
and operation cost and durable, which overturns the concept that high cost of splice machine
and do not apply to FTTH construction.
Features
- Low operation cost, high efficiency
- Quickly achieve the on-site termination connection
- Easy operation or use
- Pressure welding parts adopt new unique structure design, installation without glue injectino,
- no grinding,
- no consumables
- High installation quality, high success rate and installation fast, etc
- Easy to carry
- Accurate mechanical dimensions
- All materials conforms to ROHS
Application
- FTTH optic fiber terminal connection
- LAN network
- Reformation of ODF and the new patch cord of ODF on site.
Specification
Item |
Parameter |
Cable |
3.1*2.0mm drop cable |
Fiber diameter |
125um(G657A2 bare fiber) |
Tight buffer diameter |
250um |
Fiber type |
Single mode OS1 9/125um |
Insertion loss |
≤0.3dB |
Return loss |
≤-50dB |
Bare fiber solid tightness |
>250g |
Working temperature |
-40℃-+80℃ |
Tensible strength |
60N(5kgs for 2mins) |
Drop test |
4 meters high cement floor direction at a time,in total 3times
|
Order information
FS-XXX-XX-XXX
1- 2 -34
FS= fusion splice |
1 |
2 |
3 |
4 |
Connector type |
Fiber inside |
Applicable cable diameter |
House color |
|
SCU=SC/UPC SCA=SC/APC FCU=FC/UPC |
09=0.9mm 25=250um bare fiber |
09=0.9mm 20=2.0mm 30=3.0mm |
B=blue B=black G=green |

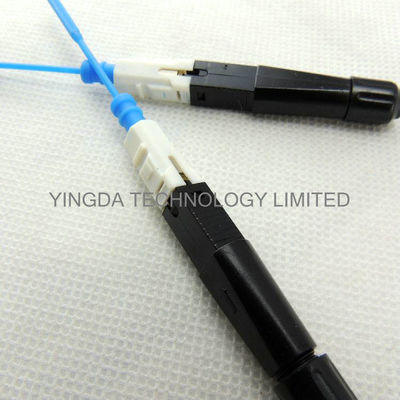

More photos
* Please use the customized FTTH melting machine
* Recommended consumable:
Keep a supply of the following items
- Denatured alcohol
- Lint-free tissues
- Cotton swab
