12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO SGS
หมายเลขรุ่น FTB002
จำนวนสั่งซื้อขั้นต่ำ 100PCS
ราคา NEGOTIABLE
รายละเอียดการบรรจุ 1 pc per box, 48 pcs per carton shipping box
เวลาการส่งมอบ 5-8 working days
เงื่อนไขการชำระเงิน T/T, Western Union, MoneyGram

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
ความจุ เส้นใย 12 มัด สายเคเบิลเข้า 2 ชิ้น
มิติ 198 * 112 * 45 มม เส้นผ่านศูนย์กลางของสายเคเบิลอินพุต 16 มม
วัสดุ พีซีพลาสติกที่มีความแข็งแรงสูง สี สีเทา
ใบสมัคร FTTH FTTB ใช้ในร่ม ถาดประกบกัน สูงสุด 2 ชิ้นต่อเส้นใย 6 เส้น
พิเศษ ถอดสายเคเบิลผ่านกล่อง เส้นผ่าศูนย์กลางเอาท์พุท พอร์ตขนาดเล็ก 12 พอร์ตสำหรับผมเปีย
แสงสูง

fiber optic terminal box

,

fiber optic distribution box

ฝากข้อความ
รายละเอียดสินค้า

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing





Model: FTB002

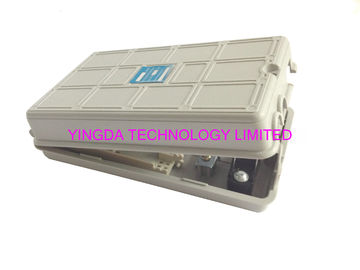

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 0

FTB002 termination box suits for jointing fibers with fiber pigtails and it protects fiber optic splices and helps to distribute. The termination box is either a wall-mounting type or desktop, which is mainly used in telecommunication equipment room and network equipment.



Applicable fiber cables



  • FTB002 is applicable for splicing 2 pieces of fiber cable with max. Diameter φ16mm.



Features



1. Structure of FTB002 is innovative, designed in up-down bisection. Its installation is simple. By

un-tightening one piece of fixing nut, it succeeds in opening the housing and it allows fiber cable

and fiber pigtail to pass in and out in single side.



2. The housing of FTB002 is made of high strength poly carbonate plastic materials, which has mechanical strength, therefore it is reliable and long-lasting. It is nice shape and beautiful appearance.



3. The tray is designed in SLIDE-IN-LOCK and its opening angle is above 90°. Therefore it is easy for

installation and maintenance. The curved diameter meets with the international standard. The capacity

of tray is 6-12cores.



4. The elastic material is used to fix fiber pigtail. When the end of fiber pigtail can not be determined.

(it is not used for the moment), it is possible to wind fiber pigtail into clasp.whenever it is needed, the active connector could be installed outside of the housing. Therefore it can connect termination

equipment without connecting adapters.



Specification



Model

No of entry/

exit ports

Splice

trays

Max. capacity

Dimension

(LxWxH)

Cable diameter:
FTB-002 2 cable ports + 12 small ports for pigtails

1*12F/

2*6F

12 fibers 198*112*45mm φ16mm



Main points during operation



1. While stripping fiber cable reserve reinforced core with 35mm length.(it is used for the distance

from fixing point of fiber cable to fixing device of reinforced core)



2. Reserve fiver with protective coat in 100mm or so (it is used for the distance from fixting point

of fiber cable to fixing point of FOST)



3. After splicing, the initial round of spliced fiber is proposed to put along the inner edge of the tray

and the rest bending as round with diameter not less than φ80mm inside the tray.



More pictures



12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 112 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 2

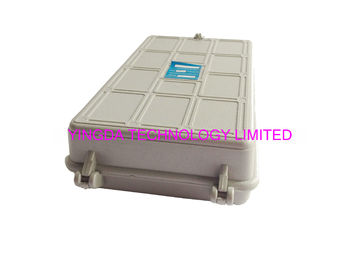

                        front cable ports view                                                back side view

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 312 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 4

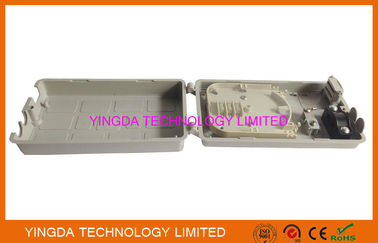

    FTTH terminal box with all accessories                termination box splice tray 6 fibers

12 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 512 Cores FTTH Mini Fiber Optic Termination Box For Cable Fusion Splicing 6

fiber optic splice box with english user manual                     pack box: 1 piece/box single package





List of accessories



Name Unit Quantity
Heat shrinkable protective sleeve Pc Configuration as per capacity
Nylon tie Pc Configuration as per capacity
Labeling paper Pc 1
Plastic shrinkable tube Pc 4
Bolts Pc 4
Manual Pc 1
