4 Port UV Weather Resistant FTTH Fiber Termination Box 4 Fibers SC Wall Mount Box
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO |
หมายเลขรุ่น | FTB104C 106C |
จำนวนสั่งซื้อขั้นต่ำ | 100PCS |
ราคา | NEGOTIABLE |
รายละเอียดการบรรจุ | 1 pc / box, 60 pcs / carton shipping box |
เวลาการส่งมอบ | 5-8 working days |
เงื่อนไขการชำระเงิน | Western Union, T/T, MoneyGram |
สามารถในการผลิต | 100000 pcs / month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xCapacity | 4 fibers single | Cable inport | 1 inports, 4 outports |
---|---|---|---|
Dimension | 210*140*40mm | Cable diameter | 7-10mm |
Material | ABS anti-UV, flame retartant | Color | white |
Application | FTTH FTTX,FTTB | Adapter | 4xSC, 4XFC,4X LC duplex |
Cable output | 7-10mm or 2.0*3.0mm FTTH drop cable | ||
แสงสูง | fiber optic junction box,fiber optic distribution box |
4 Port UV Weather Resistant FTTH Fiber Termination Box, 4 Fibers SC Wall Mount Box
Model:FTB104C
YINGDA 4 port FTTH fiber termination box is wall mountable and rack mountable and can be used for exterior walls, basements, and other locations needing FTTH. The box is UV and weather resistant and can be used with a variety of adapters with a SC footprint.
Features
- Wall mountable and rack mountable
- UV Resistant
- Weather Resistant
- The base and cover of the box adopts a "self-clip" method, which is easy and convenient to open and close
- Can be used with SC simplex adapters or LC duplex adapters with a SC footprint
- The max capacity is 4 fibers
Specifications
Material | PC + ABS |
UV Resistant | Yes |
Weather Resistant | Yes |
Size (LxWxD) | 210*140*40mm |
Splitting | 1piece 1:4 micro splitter |
Capacity | 4 single fibers (max) |
Cables | Not included |
More pictures

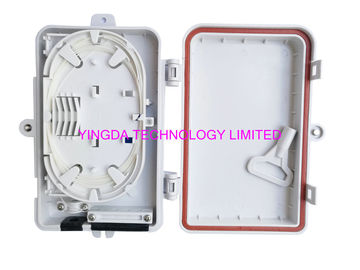

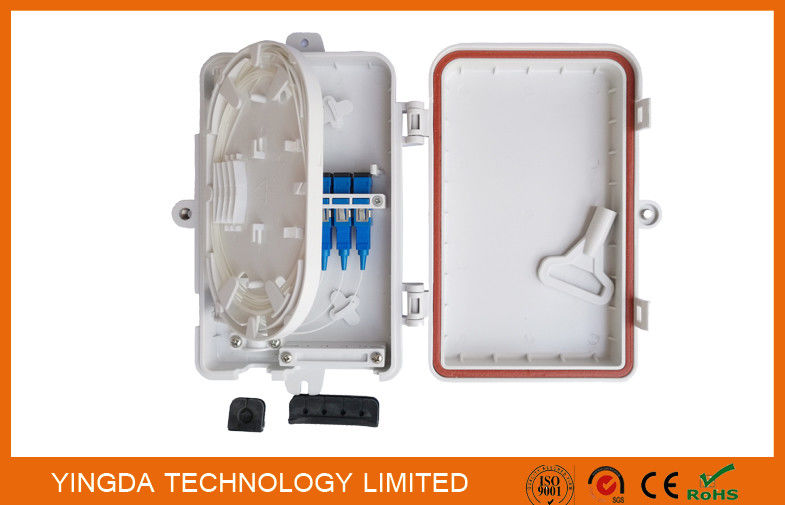

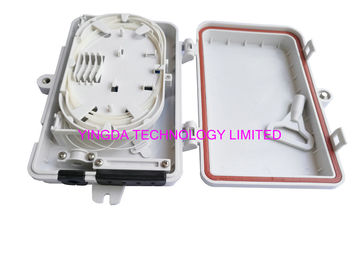

external internal
- terminal box FTB104C is made of ABS+PC export material, high strength, high quality
- compact size, light weight
- total box is white color, with special wrench to open
- it is self-clip design, easy open and close repeatly.
- the box is waterproof, IP65 protection level with black rubber seal and silicon rubber sealing cirle in red
- good performance in harsh environment
- the adapter panel under the splice tray is fix on the box, max. can install 4 pieces X SC simplex adapters, but also this adapter panel can change into FC, ST,LC etc., see below picture:
cable ports from top side cable ports from back side
- cable ports: 1inports, 4 outports
- inports cable diameter: 7-10mm;
- outports cable diameter: 0.9mm,2.0mm,3.0mm or 2x3.0mm drop cable

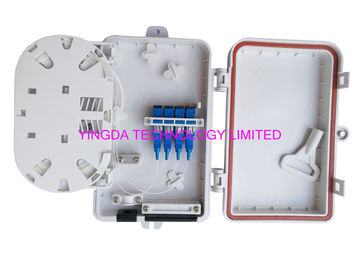

cable ports and splice tray view in details
Package information
Model | Carton size | Carton qty | G.W. |
FTB104C/106C | 51.5*47.5*46.5 cm | 60 pcs | 22.5 kgs |
