1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate

สถานที่กำเนิด จีน
ชื่อแบรนด์ YINGDA
ได้รับการรับรอง ISO
หมายเลขรุ่น FTB86D
จำนวนสั่งซื้อขั้นต่ำ 100 pcs
ราคา negotiable
รายละเอียดการบรรจุ 1pc per plastic bag, 260pcs per carton box
เวลาการส่งมอบ 5-8days after payment
สามารถในการผลิต 500,000 pcs per month

ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี

WhatsApp:0086 18588475571

วีแชท: 0086 18588475571

สไกป์: sales10@aixton.com

หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง

x
รายละเอียดสินค้า
material ABS + PC color white
capacity 2 Core adapter 1pcs SC simplex, 1 pcs LC duplex coupler
output port adapter or indoor cable, ftth drop cable size 90*120*25 mm
cable diameter Φ7~Φ14mm application wall mount
cable port 1in 1 out feature flame retardant
แสงสูง

fiber optic terminal box

,

fiber optic distribution box

ฝากข้อความ
รายละเอียดสินค้า

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate





Model:FTB86D



Used in the end termination of residential buildings and villas, to fix and splice with pigtails.



Features

  • Small size, light weight, pleasing in appearance
  • Can be installed on the wall with mechanical protective function
  • May adapt variety of optical connection styles.
  • Optical fiber can be managed effectively
  • Set strengthen device and fiber optic cable mounting seat
  • SC 1cores, LC 2 cores.
  • Max capacity for SC 1 cores or LC 2 cores
  • Suitable for indoor wall mount

Specification



Item FTB-86D
Dimension(mm) H120×W90×D25
Weight(Kg) 0.075
Cable diameter (mm) Φ7~Φ14
Cable port 2 holes
Max capacity of splice tray 2-4(single fiber)
Max No of splice tray 1
Max capacity of cable 4(single fiber)



Kit content



Item Type Quantity
Fiber protective sleeves 60mm According to cores
Cable tie 60mm 10×splice tray
Nails of installation Nail 2pcs



Packing information

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 0 1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 1

Model Dimension (mm) Outer carton dimension (mm) Outer carton weight(kg) No of units per carton(pcs)
FTB-86D 120×90×25 530x390x535 23.0 260





Installation tool

1 Knife

2 Screwdriver

3 Plier



Component

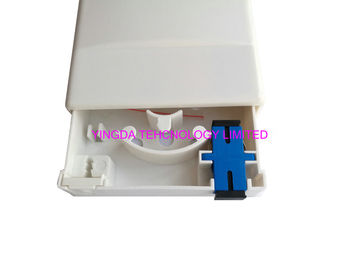

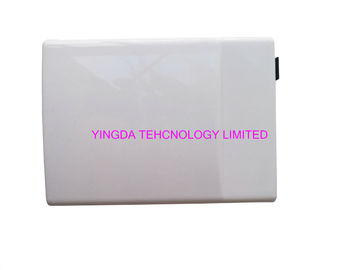

1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 2





1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 31 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 4

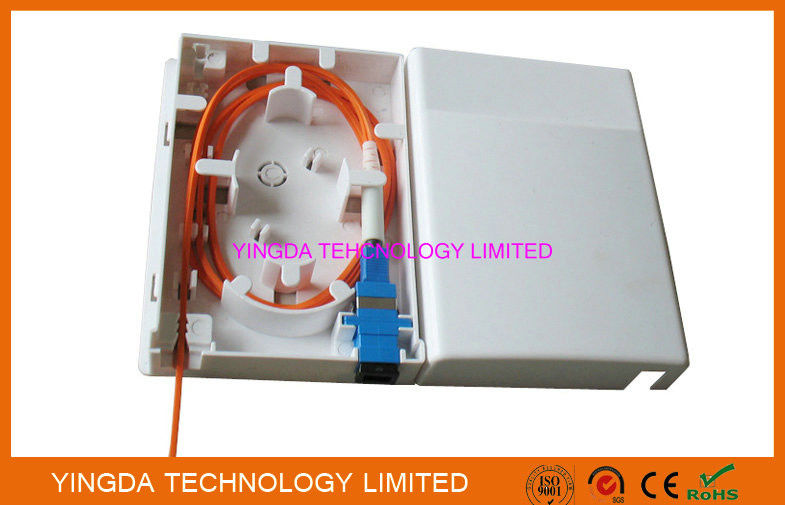

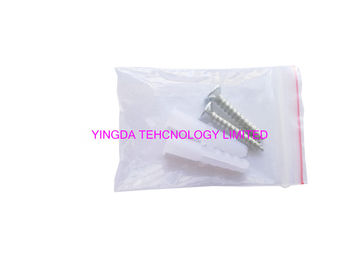

terminal box can use 1x SC adapter, all box include wall mounting accessories.



1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 51 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 6

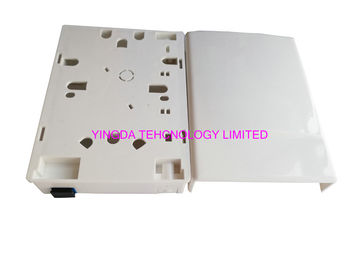

all the box is self-clip design, slide in



1 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 71 Port FTTH Box indoor Wall Mounting Resident Fiber Optical Distribution Box Faceplate 8

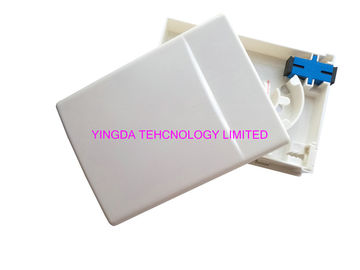

there is 1 cable port in front and back, and 1 pc SC adapters.





Method of installation



1 Measure distance of two installation holes, then drill holes on the wall, then fix the base of the box on the wall by expansion nails.

2 Peel cable, take out required fibers, then fix the input cable on the body of the box..

3 Splice drop cable and pigtail as below splice slot.

4 Store connected fibers on the below tray, then fixed by tie, then lead out on the output port by 1 Simplex SC or 1 Duplex LC adaptors. The lower part of the adaptor slot can be remove by plier.

5 Insert the body on the base’s hook, close cover, the installation is over.
