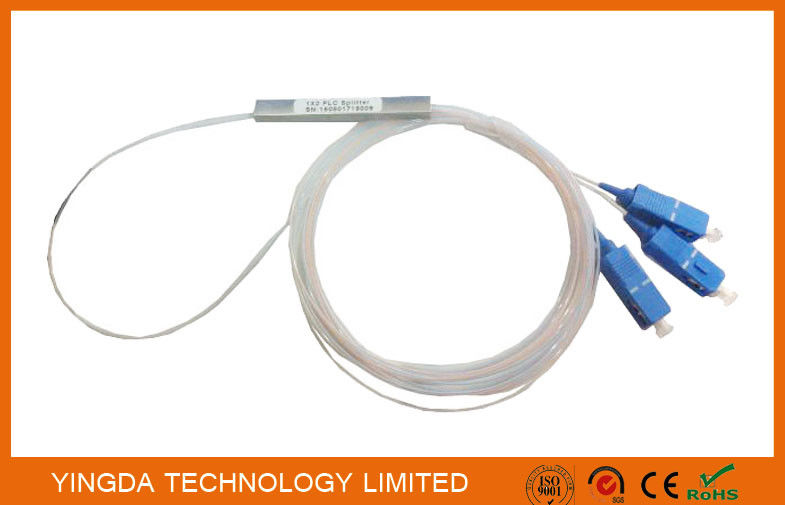

Steel Tube Splitter PLC 900um 1 Meter LSZH G657A SC Connector
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO |
หมายเลขรุ่น | 1X2 1*2 1:2 PLC splitter |
จำนวนสั่งซื้อขั้นต่ำ | 100 pcs |
ราคา | negotiable |
รายละเอียดการบรรจุ | 1pc/ box,100pcs/carton box |
เวลาการส่งมอบ | 5-8days after payment |
เงื่อนไขการชำระเงิน | Western Union, T/T, MoneyGram |
สามารถในการผลิต | 10,000 pcs per month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xsplit ratio | 1:2 coupler | connector | SC UPC |
---|---|---|---|
fiber type | SMF G657A1 | insertion loss | <3.5dB |
Uniformity (Max.) | <0.5dB | wavelength | 1260 - 1650 nm |
PDL(Max.) | 0.2dB | Standard | Telcordia GR-1221 and GR-1209 |
steel tube | 60*7*4mm | ||
แสงสูง | ตัวแยกสัญญาณไฟเบอร์ออปติก,fbt coupler |
1x2 1:2 1*2 Steel Tube Splitter PLC 900um 1Meter LSZH G657A SC Connector UPC Polished
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.

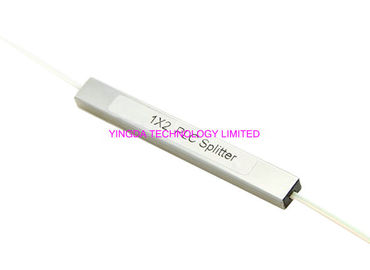

Steel tube size:
Features
- Low insertion loss and PDL
- High channel number
- Compact size
- High reliability
- Wide operating wavelength and temperature range
- Excellent channel uniformity
- Telecordia GR-1221 and GR-1209

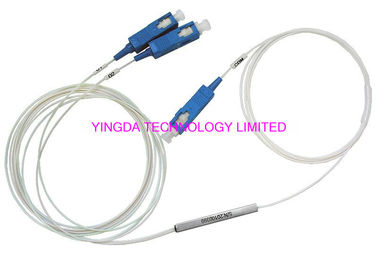

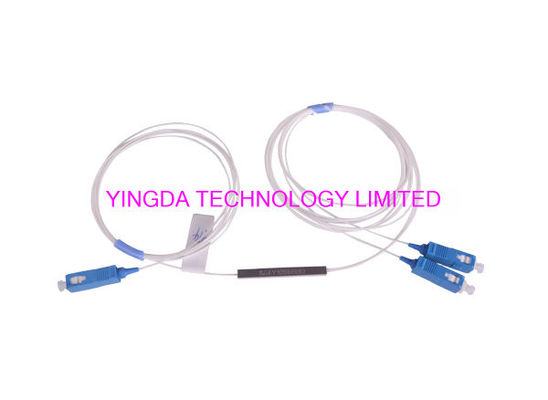

More pictures
PLC splitter steel tube can add connectors, SC/UPC or SC/APC
the cable diameter is 0.9mm, can be white or different color input and output.
Each cable have label ring to identify the split
steel tube can print: customer LOGO,product name serial number as per customer request
each PLC splitter will pack with 1pc test report when delivery.
package can be blister bag or carton box. For cost saving, we suggest carton box, it can also protect the fibers and products in a very good condition.
Specifications (1XN):
Port Configration | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | |
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
Insertion Loss (dB) | Typical | 3.5 | 6.8 | 10.2 | 13.1 | 16.2 | 20.2 |
Max | 4.0 | 7.4 | 10.5 | 13.5 | 16.9 | 21.0 | |
Channel Uniformity (dB) | 0.5 | 0.7 | 1.0 | 1.4 | 1.8 | 2.0 | |
PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
WDL (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | |
TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 60X12X4 | 80(L)X20(W)X6(H) | ||||
RL (dB) | > 55dB | ||||||
Directivity (dB) | > 55dB | ||||||
Fiber Type | G652D or G657A | ||||||
Operating Temperature Range | -40ºC ~ 85ºC |
Specifications (2XN):
Port Configration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | |
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||
Insertion Loss (dB) | Typical | 3.8 | 7.2 | 10.6 | 14.0 | 16.8 | 20.8 |
Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | |
Channel Uniformity (dB) | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 | |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 | |
WDL (dB) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | |
TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | |
Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 80(L)X12(W)X4(H) | 80X20X6 | ||||
RL (dB) | > 50dB | ||||||
Directivity (dB) | > 55dB | ||||||
Fiber Type | G652D or G657A | ||||||
Operating Temperature Range | -40ºC ~ 85ºC |
