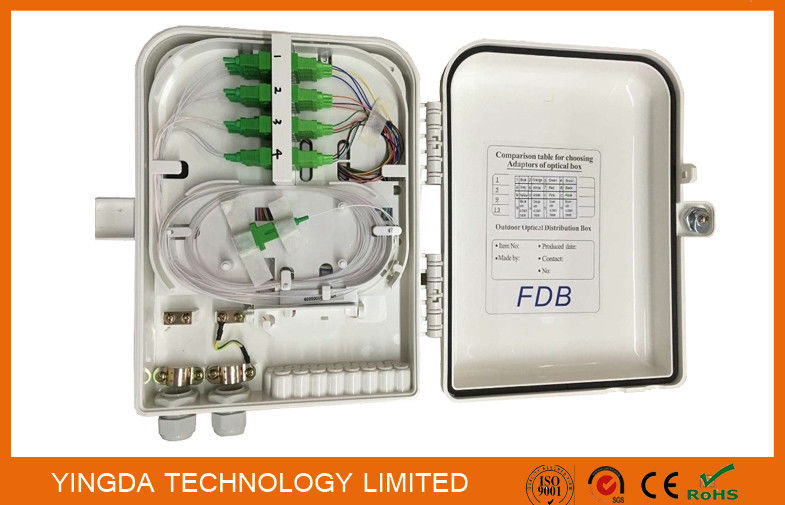

Outdoor 16 Core Fiber Optic Termination Box With SC/APC Adapters

FTTH Outdoor 16Core Fiber Optic Termination Box With SC/APC Adapters, 1x16 PLC Splitter Plastic

This fiber optic distribution box is adopted the latest design, no special tool for the locking, easy installation and opening. Flip-open cover design to avoid removing other splice tray, it also can be equipped with PLC splitter.

It is with the functions of mechanical splice,fusion splice,light splitting,wiring distribution.

Applications

1.Applicable in FTTH project
2. Suitable for corridor,basement,room and building's outer walls application
3. With the function of mechanical splice,fusion splice,light splitting,wiring distributions

Features:

1. Industry Standard User Interface, be made of high impact plastic.
2. Can accommodate 1x8 & 1X16 PLC splitter.
3. Anti-UV, Ultra violet resistant and rainfall resistant.
4. Up to 16 FTTH drops.
5. Wall and pole mountable.
6. 2 inlet ports, 16 outlet ports.

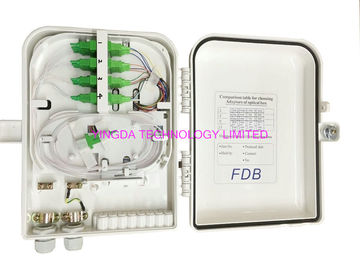

More clear pictures

• there is rubber seal all around the box in red color, which prevents the box from water, humidity and harsh environment outside.

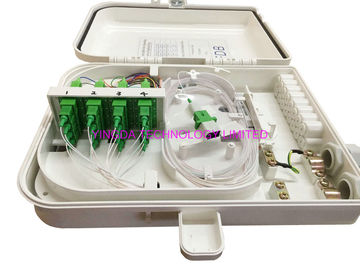

• it has double layer tray, upper layer for adapter panel and fiber routing or storage, down layer is for distribution, splitting or heatsrhink protection storage.

• the adapter panel is plastic, and fix by screws, it maximum can install 16pcs SC adapters simplex, or LC duplex.
• there is a speical fixation place for PLC splitter steel tube, maximum hold 1x16 plc splitters and there is 24pcs heat shrink tube protection tray.

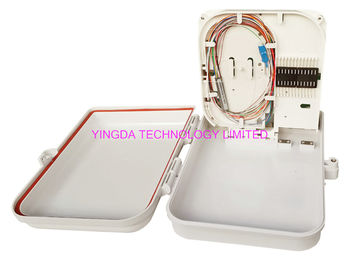

• the whole tray can be 90° angel rorate to ease on-site construction, during transporation,tighten the screws with box. Then it will be in place, not moving and break fiber, humanity design.
• for better identification, the splitter input connectors can be blue color, then it will not confused with outputs connectors like below right pictures.

empty box can install plc splitter mini module 0.9mm, steel tube, it has enough space for fiber storage, the cable length better to be 1meter or maximum 1.5meters.
