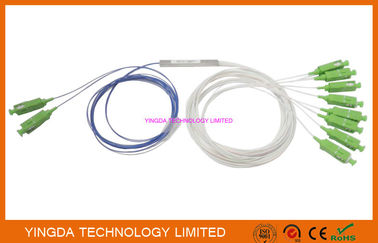

2x8 Blockless Mini Type PLC Splitter In GPON Network 1260 - 1650 nm
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xsplit ratio | 2x8 micro splitter | connector | SC/APC coupler |
---|---|---|---|
fiber type | 9/125UM G657A1 | insertion loss | dB |
Uniformity (Max.) | dB | wavelength | 1260 - 1650 nm |
PDL(Max.) | dB | Standard | Telcordia GR-1221 and GR-1209 |
tube dimension | mm | cable diameter | 0.9mm |
cable color | input BLUE, output: WHITE | ||
แสงสูง | ตัวแยกสัญญาณไฟเบอร์ออปติก,plc splitter |
2x8 Blockless Mini Type PLC Splitter In GPON Network With SC Connectors Fibre Optical 100% Test 3Dimensions
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity.
Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.
Features
Low insertion loss and PDL
High channel number
Compact size
High reliability
Wide operating wavelength and temperature range
Excellent channel uniformity
Conforms to Telecordia GR-1221 and GR-1209
Application
FTTH
CATV
TEST OPTICAL
LAN/WAN
Technical Parameters
B | Optical Performance | Unit | Specification | |
1 | Insertion Loss (without Connector) | MAX | dB | 10.6 |
Insertion Loss of Connector | MAX | dB | None | |
Insertion Loss of Adapter | MAX | dB | None | |
2 | Uniformity Loss | MAX | dB | 1.0 |
3 | Polarization Dependent Loss | MAX | dB | 0.3 |
4 | Wavelength Bandwidth | MIN | nm | 1260~1650 |
5 | Return Loss (All Port) | MIN | dB | 55 |
6 | Directivity | MIN | dB | 55 |
7 | Operating Temperature | oC | dB | -40~85 |
C | Mechanical and Configuration | Specification | ||
1 | Labelling (Label Material & Dimension) | - | 5*35(mm) | |
2 | Serialization (Laser Marking or others) | - | label | |
3 | PLC Splitter Packing | - | Stainless Steel Tube | |
4 | Package Diemension | - | 4*7*60(mm) | |
D | Special Materials | Specification | ||
1 | Fiber Type | - | G657A1 | |
2 | Fiber Color | - | Input: Transparent Output: 2*4 Color (Blue/Orange/Green/Brown) |
|
3 | Tube Type | - | Φ0.9mm, Hytrel | |
4 | Tube Color | - | Input: White Output: White |
|
E | Data Document Preparation | Specification | ||
1 | Individual Test Data Sheet Format | Hardcopy | 1310, 1490, 1550nm ILUFPDL | |
2 | Electronic Media Test Data File Format | MS-Excel | As usual |
YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
