SC/UPC Coupler Fiber Optic PLC Splitter 2X8 900um 9/125um SM 1Meter G657A LSZH
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xsplit ratio | 2x8 PLC splitter | connector | SC/UPC coupler |
---|---|---|---|
fiber type | 9/125UM G657A1 | insertion loss | 10.6dB |
Uniformity (Max.) | 1.0dB | wavelength | 1260 - 1650 nm |
PDL(Max.) | 0.3dB | Standard | Telcordia GR-1221 and GR-1209 |
tube dimension | 4*7*60mm | cable diameter | 0.9mm |
cable color | input white, output:Blue/Orange/Green/Brown | ||
แสงสูง | ตัวแยกสัญญาณไฟเบอร์ออปติก,fbt coupler |

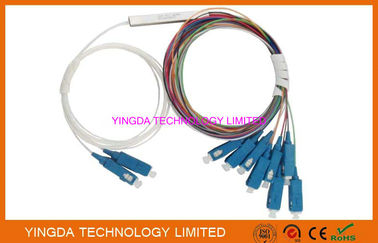

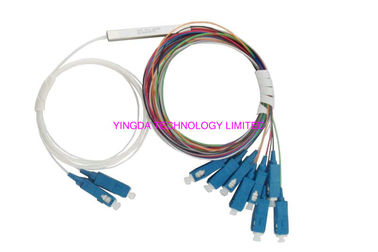

Fiber Optic PLC Splitter 2X8 Mini Modules 900um 9/125um SM 1Meter G657A LSZH SC/UPC Loose Tube
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity.
Precision Micro-optics provides 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter shown below.
Features
- Low insertion loss and PDL
- High channel number
- Compact size
- High reliability
- Wide operating wavelength and temperature range
- Excellent channel uniformity
- Conforms to Telecordia GR-1221 and GR-1209
Technical Parameters
Steel tube Dimension
Optical Performance | Unit | Specification | |
Insertion Loss (without Connector) | MAX | dB | 10.6 |
Insertion Loss of Connector | MAX | dB | None |
Insertion Loss of Adapter | MAX | dB | None |
Uniformity Loss | MAX | dB | 1.0 |
Polarization Dependent Loss | MAX | dB | 0.3 |
Wavelength Bandwidth | MIN | nm | 1260~1650 |
Return Loss (All Port) | MIN | dB | 55 |
Directivity | MIN | dB | 55 |
Operating Temperature | oC | dB | -40~85 |

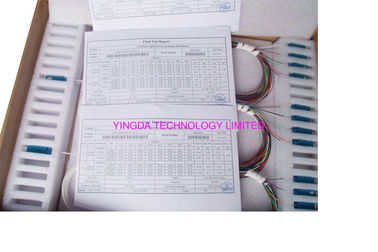

Individual Test Data Sheet Format | Hardcopy | 1310, 1490, 1550nm ILUFPDL | |
Fiber Type | - | G657A1 | |
Fiber Color | - | Input: Transparent Output: 2*4 Color (Blue/Orange/Green/Brown) |
|
Tube Type | - | Φ0.9mm, Hytrel | |
Tube Color | - | Input: White Output: White |
|
PLC Splitter Packing | - | Stainless Steel Tube | |
Package Diemension | - | 4*7*60(mm) |
Product details
steel tube: 60*7*4mm,mini module, input and putput 0.9mm tube
- input and output white color, can be customized
- cable length can be 1 meter, 1.5meter or customized
- connector can be: SC FC ST LC...ETC
- Polish method: upc apc

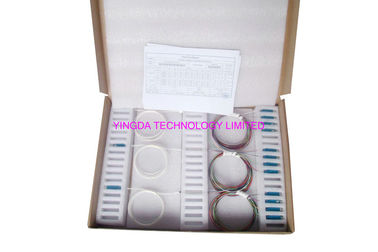

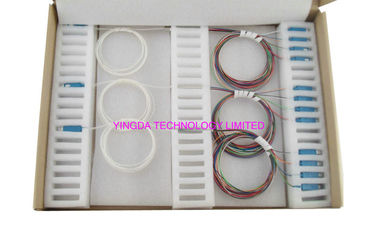

package: 1pc/ blister box, or 4pcs/box
Order information
Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
PLCS | BF=bare fiber FO=fan-out MD=module MB=metal box |
01X02 01x04 01x08 …… 02x16 02x32 02x64 |
0=G652D 1=G657A C=Customize |
1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube |
1=1m 2=1.5m C=Customize |
0=no connector
|
YINGDA produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.
