1:16 Splitter Optical Terminal Box , Fiber Optic Splitter Box With LGX Module SC/UPC Coupler
สถานที่กำเนิด | จีน |
---|---|
ชื่อแบรนด์ | YINGDA |
ได้รับการรับรอง | ISO |
หมายเลขรุ่น | FDB0216G |
จำนวนสั่งซื้อขั้นต่ำ | 200pcs, first order accept small order |
ราคา | negotiable |
รายละเอียดการบรรจุ | 1pc/box, 20pcs/carton box |
เวลาการส่งมอบ | 5-8working days |
เงื่อนไขการชำระเงิน | T/T, Western Union, MoneyGram, L/C |
สามารถในการผลิต | 50k per month |
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | high strength engineering PC+ABS | Capacity | 16cores optical fiber |
---|---|---|---|
Adapter | SC/UPC | mini splitter | 1:16 plarrnar lightwave circuit coupler |
color | gray, black, or white | size | 306*240*106mm |
connector insertion loss | <0.3dB | OME or sample | ok |
cable port | 2inlet,16outlet, express inputs | cable diameter | 3-16mm |
features | with bucket | appliation | villas wall mounted |
แสงสูง | fiber optic closure,splitter distribution box |

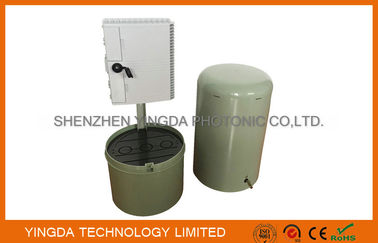

Outdoor Villas Fiber Access Terminal IP65 Plastic 16 Port Fiber Optic Termination Splitter Box With Bucket
FDB0216G optical terminal box is 2016 newly design and widely use in FTTH solution system, the unique design of bucket is especially use for villas. It is nice outer appearance, high strength, high protection to water, dust, wind,or any other harsh environment. The bucket is big enough to hold many different size of boxes on customer request.
Meanwhile, the entry of the box is 2ports, it can be cable gland to reach IP68 waterproof class or use inline through express port for un-cut cable go through the box. It is very flexible design.
The hinge and clip design of the box structure makes it more stable, stronger and more beautiful.
The dual layers of the tray is rotatable, the upwards is for adapter panel or LGX module fixture, the downwards is for fusion splice, the bottom of the box can also use for splittter module fix position on customer demand.
Welcome customer design or trial order.
Features
- Industry Standard User Interface, be made of high strength engineering plastic ABS+PC
- Can accommodate 1x4,1x8,1X16,2x4,2x8 & 2x16 PLC splitter micro module
- Rainfall resistant, IP65 outdoor application
- Up to 16 FTTH drops.
- Wall mounting and pole mounting application.
- 2 inlet ports,16 outlet ports with 16pcs adapters of SC/ LC duplex
Applications:
- FTTH access network
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
More pictures
FULLY LOAD WITH SC/UPC ADAPTER + PLC SPLITTER 1:8 WITH SC CONNECTORS
EMPTY BOX DETIAL VIEW
EMPTY BOX WHOLE VIEW
Specification
Model | FDB0216G |
Dimension | 306*240*106mm |
Cable port | 2in,16out |
Cable diameter | 2in:φ 8mm; 16out: φ3mm |
Adapter quantity | 16pcs SC |
PLC splitter | 1x2,1x4,1x8,1x16,2x2,2x4,2x8,2x16 micro or module splitter |
Max. Fusion splice | 16fibers |
Installation | Wall mount / pole mount |
Material | PC+ABS |
Color | White, black, gray |
Package information | |
Quantity/Carton | 10cs/carton |
Carton size | 60*35*52cm |
Gross weight/Carton | 17.5kgs |
Optical parameters | |
Insertion loss | <0.3dB |
Return loss | >50dB/upc, 60dB/APC, 35dB/PC |
YINGDA is specialize in fiber optic terminal box, plc splitter, patchcord, MPO truck cable, adapter, attenuator,etc. We strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
