| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | YD-FBT-CM-102-10-SC |
| ขั้นต่ำ: | 50 pcs |
| ราคา: | 1.1USD-4.58USD |
| ระยะเวลาการจัดส่ง: | 5-8days after payment |

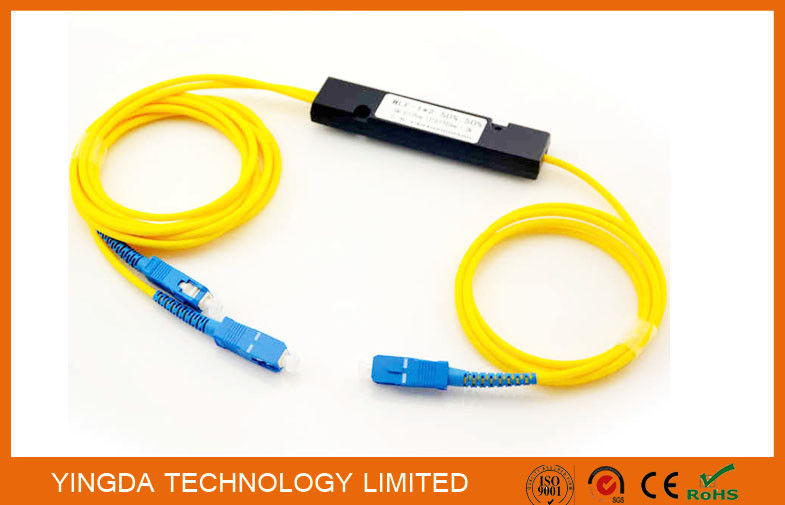

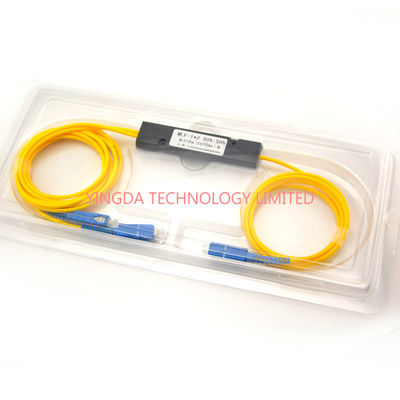

FTTH Fiber Optic PLC Splitter 1x2 Cassette Module, Fused Welding FTB Coupler 50% / 50%
Description:
The single mode dual/Three window couplers are based on FBT technology,
have excellent performance.
Features
Application:
Performance Specification
|
Coupling Ratio |
Insertion Loss(dB) |
|
|
P |
A |
|
|
50/50 |
3.5/3.5 |
3.6/3.6 |
|
40/60 |
4.7/2.7 |
5.0/2.9 |
|
30/70 |
6.0/1.9 |
6.4/2.1 |
|
20/80 |
7.9/1.2 |
8.5/1.4 |
|
10/90 |
11.3/0.6 |
12.7/0.8 |
|
5/95 |
14.0/0.45 |
17.5/0.5 |
|
1/99 |
21.0/0.2 |
21.5/0.25 |
|
Excess Loss(Typ.)((dB) |
0.10 |
0.15 |
|
Polarization Sensitivity(dB) |
0.10 |
0.15 |
|
Operating Wavelength(nm) |
1310±40, 1550±40,1310/1550±40, 1310/1550±40/1490±20 |
|
|
Directivity((dB) |
≥55 |
|
|
Return loss(dB) |
≥55 |
|
|
Port Configuration |
1×2 or 2×2 |
|
|
Major parameter |
unit |
Performance |
||||||||
|
Operating Wavelength |
nm |
single window; dual windows; three windows |
||||||||
|
(1xN) |
|
N=3 |
N=4 |
N=5 |
N=8 |
N=16 |
N=24 |
N=32 |
N=64 |
|
|
Fiber type |
|
Corning SMF-28e |
||||||||
|
Max. Insertion Loss |
dB |
5.41 /5.62 |
7.01 /7.22 |
7.81 /8.02 |
10.01 /10.42 |
13.51 /13.92 |
15.01 /15.42 |
17.31 /17.52 |
21.01/ 21.52 |
|
|
Uniformity |
dB |
0.51/ 0.62 |
0.51/ 0.62 |
0.61/ 0.82 |
0.81/1.02 |
1.11/ 1.32 |
1.21/ 1.52 |
1.31/ 1.52 |
2.11/ 2.52 |
|
|
Return loss |
dB |
≥55 |
||||||||
|
Directivity |
dB |
≥55 |
||||||||
|
PDL |
dB |
<0.20 |
<0.20 |
<0.30 |
<0.40 |
<0.40 |
<0.50 |
<0.50 |
<0.50 |
|
