| ขั้นต่ำ: | 100 ชิ้น |
| ราคา: | 0.2USD-100USD |
| บรรจุภัณฑ์มาตรฐาน: | 1 ชิ้น/กล่อง 5 ชิ้น/กล่องกล่อง |
| ระยะเวลาการจัดส่ง: | 7 วันหลังการชำระเงิน |
| วิธีการจ่ายเงิน: | เวสเทิร์นยูเนี่ยน, T/T |
| ความสามารถในการจัดหา: | 10,000 ชิ้นต่อเดือน |
This high-density cable system is designed for data center applications, offering large capacity in a compact 1U form factor.
MPO Sliding Drawer Type Fiber optic patch panels are auxiliary equipment for data center and high density cabling systems. They feature large capacity, small size, and excellent performance. The 19-inch standard size is suitable for rack mount optical distribution frames and compatible with LC duplex couplers.
| Dimension | 482*315*1U mm |
| Max capacity | 96 cores |
| Material | Cold rolled steel SPCC |
| Cable entry port | 4 round port with rubber φ20mm |
| Cable exit port | LC duplex adapters |
| Adapter quantity | 48 pcs |
| Operating temperature | -10~+85°C |
| Standards | TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C, CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS |
| IP Rating | IP20 |
| Color | Black |
| Insertion loss | <0.7dB (standard loss), <0.35dB (Elite loss) |
| Return loss | >65dB APC, >50dB UPC, >30dB PC |
| Mating durability | 500 times |
| Wavelength | 850-1550nm |
| Standards | IEC61300, IEC61754, ROHS, etc |
1U rack mount patch panel, suitable for standard 19-inch rack mount optical distribution frame, mounting ears at both sides to fix on ODF. This optical fiber enclosure is made of cold rolled steel with spray, black color and with large fiber management area at front plate.
Cable entry quantity and the cable diameter can be customized, all ports with cable clamps and fixtures internal easy operation.

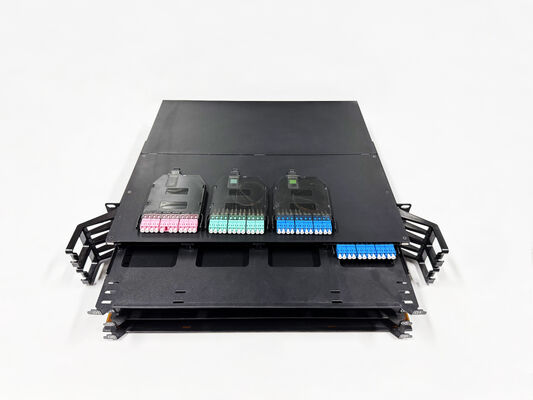

This drawer type fiber patch panel is with metal sliding tray at both sides, easy to operate at front after taking whole internal out, no need to open the top cover.
1U rack maximum install 4 pieces MPO cassettes, each modular 24 fibers with MPO MTP adapter, MPO LC patch cord and LC adapters. Can use 8 fibers, 12 fibers or 24 fibers MPO on customer request.
This patch panel can fully load with 8 pieces MPO-MPO trunk cable, 8 pieces 12 cores MPO LC patch cable assembly, MPO to LC cable 8 pieces MPO MTP adapters, LC duplex coupler 12*4 = 48 pieces.
If customer needs, pre-terminated cable assembly in factory and pack them well before delivery. 100% test before delivery, quality assurance.
