| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | MCP-LSF-DX01 |
| ขั้นต่ำ: | 100 pcs |
| ราคา: | 0.36USD-30USD |
| ระยะเวลาการจัดส่ง: | 7days after payment |
| เงื่อนไขการจ่ายเงิน: | Western Union, T/T |

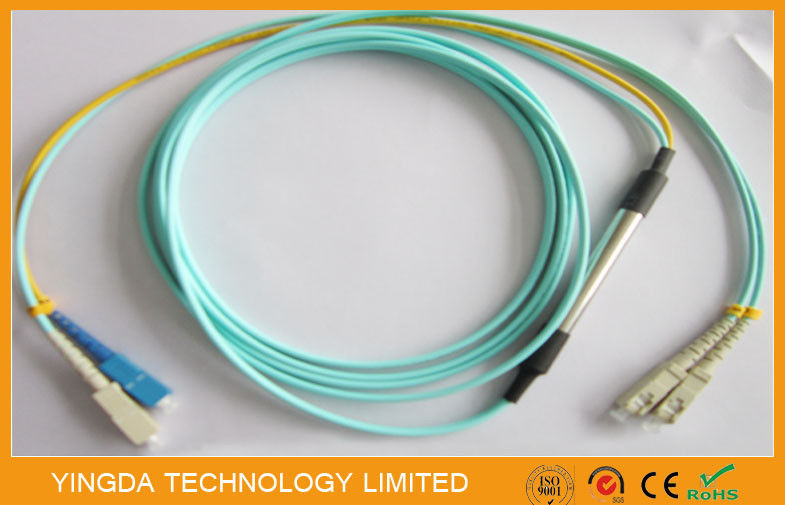

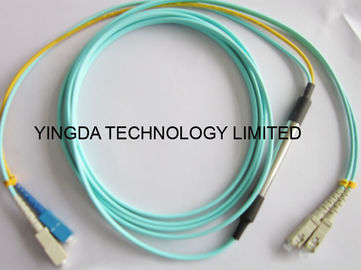

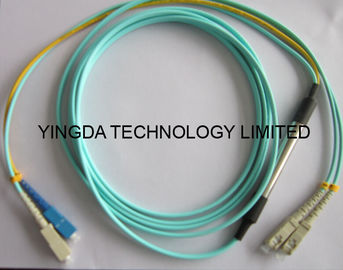

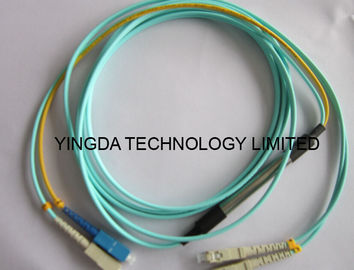

Mode Conditioning Fiber Optic Patch Cord SC - SC Duplex 50/125um OM3 10G
YINGDA Mode Conditioning Duplex Fiber Optic Patch Cable (50/125um or 62.5/125um) is use in
Gigabit Ethernet 1000BASE-LX applications. When deploying new high-speed 1000BASE-LX
routers and switches in existing multi-mode backbones, mode conditioning cable are a must.
Our Mode Conditioning cables allow 1000BASE-LX Ethernet to be run over a multi-mode
fiber optic backbone by offsetting signal loss. All Mode Conditioning Fiber Optic Cables
from the YINGDA are IEEE 802.3z compliant and completely eliminate Differential Mode
Delay (DMD).
Features
Specification
|
Item |
Multi-mode fiber(MM) |
|
|
Fiber type |
62.5/125um |
50/125um |
|
Average insertion loss/dB |
0.4 |
|
|
Max insertion loss/dB |
0.5 |
|
|
Interchangeability/dB |
<0.2 |
|
|
Fiber offset value/um |
17<offset<23 |
10<offset<16 |
|
Max Angle offset/° |
1 |
1 |
|
Working temperature/℃ |
-20~+70 |
|
|
Tensile strength/kg |
>10 |
|
Application
Order information
|
Item |
Equipment connector type |
Plant connector type |
Fiber type |
Cable diameter |
Cable length |
|
MCP
|
FC(PC/UPC) |
FC(PC/UPC) |
50/125um |
2.0mm |
0.5meter |
|
SC(PC/UPC) |
SC(PC/UPC) |
62.5/125um |
3.0mm |
1.0meter |
|
|
LC(PC/UPC) |
LC(PC/UPC) |
|
|
... |
|
|
ST(PC/UPC) |
ST(PC/UPC) |
|
|
|
|
|
|
MTRJ |
|
|
|
We can also offer other types:
