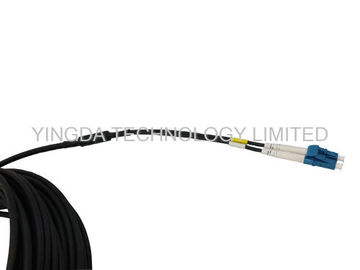

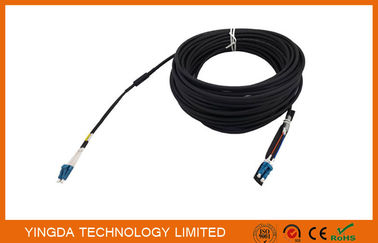

Duplex DLC LC Fiber Optic Patch Cord Leads 5.0mm 2 Core Optical Cable Assembly
1. GYFJH Cable
1.1 Structure:
FTTA RRU Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station
Far Transmission Fiber Optic Patch Cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with
7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket.
Features
Applications
Connector specification
|
Item |
Parameter |
|
Connector |
DLC/UPC |
|
Insertion loss |
≤0.3dB |
|
Return loss |
≥35dB |
|
Fiber mode |
Multi-mode,50/125um |
|
Operating wavelength |
850nm,1310nm |
|
Test wavelength |
850nm,1310nm |
|
Repeat ability |
≤0.1dB |
|
Interchange ability |
≤0.2dB |
|
Durability |
≤0.2dB |
|
Fiber length |
1m,2m.. Any length optional |
|
Length and tolerance |
10cm |
|
Operating temperature |
-40~+85°C |
|
Storage temperature |
-40~+85°C |
