| ชื่อแบรนด์: | Fujikura |
| เลขรุ่น: | CT-30A |
| ขั้นต่ำ: | 1 pc |
| ราคา: | สามารถต่อรองได้ |
| ระยะเวลาการจัดส่ง: | 5 days after payment |
| เงื่อนไขการจ่ายเงิน: | Western Union, T/T |

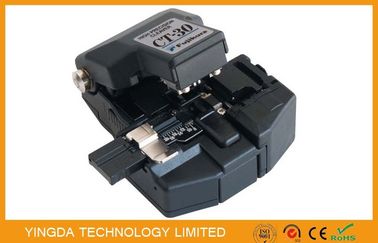

The CT-30 Cleaver sets the standard for portable, reliable and ease of use. Available
for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the CT-30
Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for
excellent portability, the CT-30 is equally at home in a splicing van or in a bucket truck
and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,
or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap
collector conveniently stores fiber shards until they can be safely discarded.
Technical specifications:
Application
Specification
|
Applicable fibers |
Silica optical fiber |
|
Bare fiber diameter |
125mm |
|
Cleaving angle |
0.5 degrees with single fiber |
|
Blade life |
48,000 fibers (1,000 fibers x 3 height x 16 positions) |
|
Blade positions |
3 height and 16 rotating positions |
|
Dimensions |
102W x 82D x 46H (mm) with FC-02 and FDB-03 |
|
Weight |
210g with FC-02 and FDB-03 |
Order information
|
Model |
Cladding diameter |
Fiber count |
Cleaving length |
Fiber placing |
|
CT-30 |
125mm |
Up to 12 fiber |
10mm |
Fiber holder |
|
CT-30A |
125mm |
Single fiber |
6 to 20mm |
Fiber plate (AD-30A) |
|
CT-30B |
125mm |
Single fiber |
16mm |
Fiber plat |
