กล่องรับสัญญาณ Dome Fiber Optic Splitter พร้อม SC Adapters 4 Ports ด้วยอะแดปเตอร์ SC
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xพอร์ตเคเบิล | 4 พอร์ต | เส้นผ่าศูนย์กลางสายเคเบิล | 2 ×Ø20มม. 2 ×Ø40มม |
---|---|---|---|
สี | สีดำ | มิติ | 510 * 250 มม |
วิธีการติดตั้ง | ติดผนัง, เสาติด, manhole, ใต้ดิน, ทางอากาศ | แยก | 1x1: 16 ตัวแยก PLC แบบ blockless หรือ 1x1: 16 หรือ 2 * ตัวแยก PLC แบบ 1: 8 |
อะแดปเตอร์ | สูงสุด 18pcs SC | วางสายเคเบิล | สูงสุด 18pcs 2 * 3.0mm |
ตะแกรงถัก | สูงสุด 5pcs | ความจุสูงสุด | เส้นใย 120 เส้น |
แสงสูง | กล่องเชื่อมต่อสายเคเบิลใยแก้วนำแสงกล่องสายเคเบิลใยแก้วนำแสงร่วม,fiber optic cable joint box |

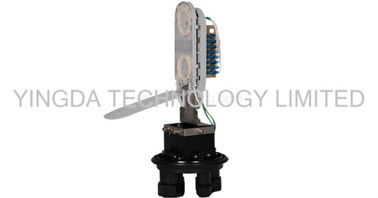

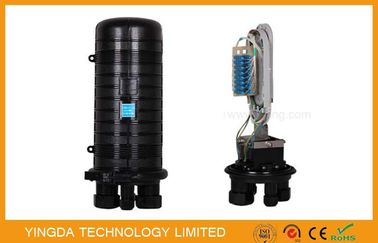

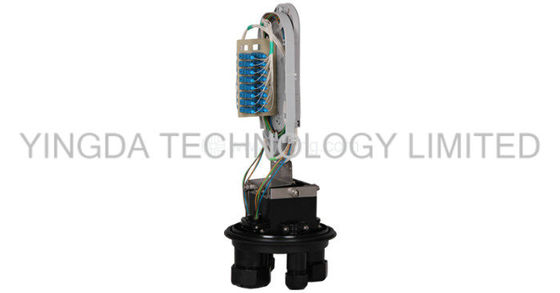

FOSC Enclosure, Dome Fiber Optic Splitter Box With SC Adapters
Fiber optic splice closure ( short FOSC) called fiber optic junction box or enclosures.
It is the cable terminated access point, then connect with optical switch through the
optical fiber jumper.
Features:
- The closure adopts mechanical sealing structure.There is one oval shaped cable port
- entrances in base. The big entrance is used for the sealing of uncut straight-through
- fiber cable, the small ports are used for branch fiber cable and drop cable.
- To adopt engineering PC plastic with high-strength to make the closure has longer life time
- and excellent sealing performance.
- It can be installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.
- There are different drop cable elements to be chosen (Φ5,2*3). Max. 18pcs drop cable input/output
- (special type Can be customized).
- The patented sealing structure keep good sealing performance after re-entry and re-using.
- It could save the installation time and improve work efficiently.
Applications:
- Suitable for bunchy fibers
- Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
- It’s especially applicable to FTTH optical fiber distribution
Specification
Model no. |
Splice Tray Capacity |
Wiring mOdule Qty & Max. Qty |
Splitter Tray Max. |
Type of Adaptor & Max. Qty |
Max. Capacity |
GJS-2001 I (Bunchy) |
5 pcs (12-24f per tray) |
None |
1 |
None |
120F |
GJS-2001 II (Bunchy) |
2 pcs (12-24f per tray) |
1 |
1 |
SC 18 pcs |
48F |
Cable Structure
