Optical Fiber Identifier / Fiber Tool Kits 800-1700 nm SC FC Adaptor Plastic LED 200G
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xmaterial | plastic | Identified Wavelength Range | 800-1700 nm |
---|---|---|---|
Signal Direction | Left & Right LED | dimension | 196X30.5X27 mm |
color | black | net weight | 200g |
Detector Type | Ø1mm InGaAs 2pcs | adaptor | SC FC |
แสงสูง | fiber termination kits,fiber polishing film |

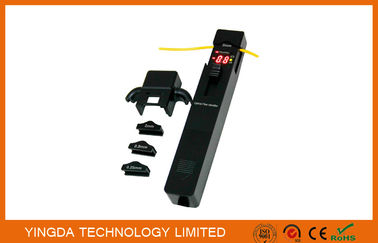

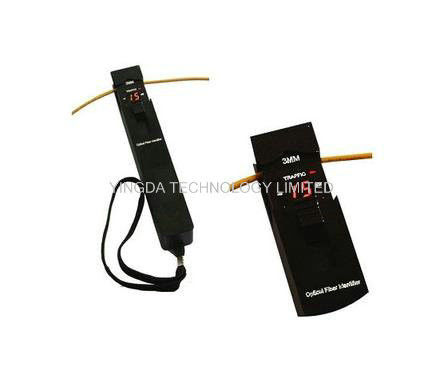

Optical Fiber Identifier JW3306B 800-1700 nm SC FC Adaptor Plastic LED 200G
JW3306B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the
relative core power without any damages to the bend fiber. When the traffice is present,the intermittently
audible tone is activated.
The JW3306B optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they

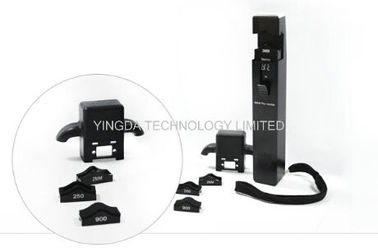

are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads
available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The JW3306A optical fiber identifier is powered by a 9V alkaline
battery .
Features
- Easy-to-use with “ONE KEY” operation.
- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
- Displays the relative core power
- More accurate test with Sunshade
- Easy-to-replace adaptors
- Durable metal housing and quality construction
- Lower power indication
Specification
Type |
JW3306B |
|
Identified Wavelength Range |
800-1700 nm |
|
Identified Signal Type |
CW, 270Hz±5%,1kHz±5%,2kHz±5% |
|
Detector Type |
Ø1mm InGaAs 2pcs |
|
Identified Signal Type |
CW, 270Hz±5%,1kHz±5%,2kHz±5% |
|
Detector Type |
Ø1mm InGaAs 2pcs |
|
Adapter Type |
Ø0.25 (Applicable for Bare Fiber),Ø0.9 (Applicable for Ø0.9 Cable ) |
|
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) |
||
Signal Direction |
Left & Right LED |
|
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) |
-46~10(1310nm) |
|
-50~10(1550nm) |
||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) |
-50~+10 |
|
Signal Frequency Display (Hz) |
270, 1k, 2k |
|
Frequency Test Range (dBm, Average Value) |
Ø0.9, Ø2.0, Ø3.0 |
-30~0 (270Hz,1KHz) |
-25~0 (2KHz) |
||
Ø0.25 |
-25~0 (1KHz,2KHz) |
|
-20~0 (2KHz) |
||
Insertion Loss(dB, Typical Value) |
0.8 (1310nm) |
|
2.5 (1550nm) |
||
Alkaline Battry(V) |
9 |
|
Operating Temperature(℃) |
-10-+60 |
|
Storage Temperature(℃) |
-25-+70 |
|
Dimension (mm) |
196X30.5X27 |
|
Weight (g) |
200 |

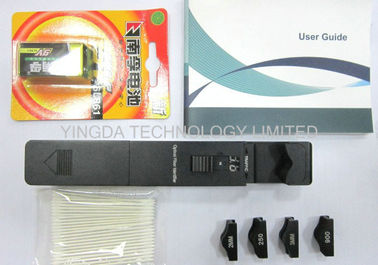

Standard Packages
MODEL |
INCLUDES |
JW3306B |

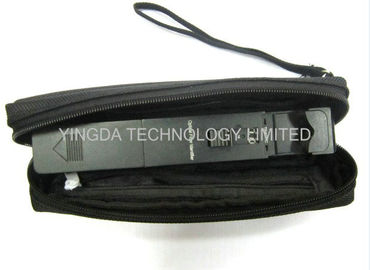

JW3306B Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case. |
