| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | FPC-SC-OS1-09-01-Y |
| ขั้นต่ำ: | 500 pcs |
| ราคา: | 0.16USD-19.9USD |
| ระยะเวลาการจัดส่ง: | 7days after payment |
| เงื่อนไขการจ่ายเงิน: | Western Union, T/T |

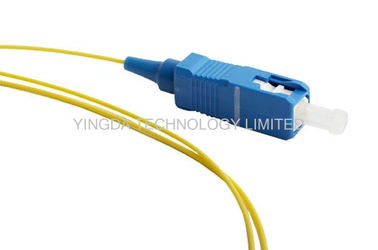

Pigtails SC PC Simplex Single Mode 9/125um 0.9mm 2M Yellow, SC Optical Pigtail
SC/PC - square card type
SC connector can plug directly,easy to use, but also easy to drop out.
SC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power in
the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits
of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Features
Application
Specification
|
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
|
Wavelength |
1310&1550nm |
850&1300nm |
|
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
|
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
|
Max. insertion loss |
≤0.5dB |
≤0.5dB |
|
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
|
Operating temperature |
-40~+75℃ |
|
|
Storage temperature |
-40~+85℃ |
|
Ordering Information
LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
|
|
