| ขั้นต่ำ: | 500 pcs |
| ราคา: | 0.16USD-19.9USD |
| บรรจุภัณฑ์มาตรฐาน: | 1 pc/ bag, 1500pcs / carton box |
| Delivery period: | 7days after payment |
| วิธีการจ่ายเงิน: | Western Union, T/T |
| ความสามารถในการจัดหา: | 200,000 pcs per month |

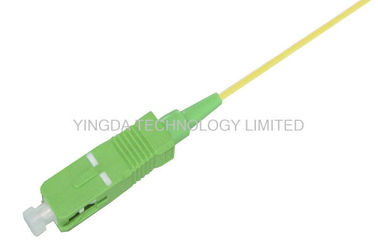

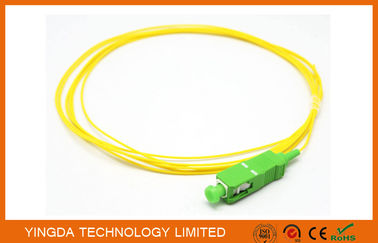

Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable
SC is short for square card type, SC fIber optic connector can plug directly, easy to use, but also easy to drop out.
SC APC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power
in the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits
of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Features
Specification
|
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
|
Wavelength |
1310&1550nm |
850&1300nm |
|
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
|
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
|
Max. insertion loss |
≤0.5dB |
≤0.5dB |
|
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
|
Operating temperature |
-40~+75℃ |
|
|
Storage temperature |
-40~+85℃ |
|
Application
Ordering Information
LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
วิดีโอ
|
|
| ขั้นต่ำ: | 500 pcs |
| ราคา: | 0.16USD-19.9USD |
| บรรจุภัณฑ์มาตรฐาน: | 1 pc/ bag, 1500pcs / carton box |
| Delivery period: | 7days after payment |
| วิธีการจ่ายเงิน: | Western Union, T/T |
| ความสามารถในการจัดหา: | 200,000 pcs per month |
Pigtails SC APC Singlemode Simplex 3 M 900 um PVC Yellow Fiber Optic Cable
SC is short for square card type, SC fIber optic connector can plug directly, easy to use, but also easy to drop out.
SC APC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power
in the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits
of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Features
Specification
|
Item |
Single mode (nomomodo) |
Multimode (Multimodo) |
|
Wavelength |
1310&1550nm |
850&1300nm |
|
Fiber type |
9/125um |
62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
|
Connector type |
SC ST FC LC MU MTRJ E2000 DIN D4 ESCON |
|
|
Insertion loss on average |
≤0.3dB |
≤0.3dB |
|
Max. insertion loss |
≤0.5dB |
≤0.5dB |
|
Return loss |
UPC≥55dB;APC≥65dB |
≥20dB |
|
Operating temperature |
-40~+75℃ |
|
|
Storage temperature |
-40~+85℃ |
|
Application
Ordering Information
LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
