| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | 1*16 mini plc splitter |
| ขั้นต่ำ: | 100 pcs |
| ราคา: | 1.1USD-4.58USD |
| ระยะเวลาการจัดส่ง: | 5-8days after payment |

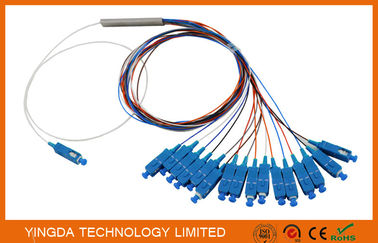

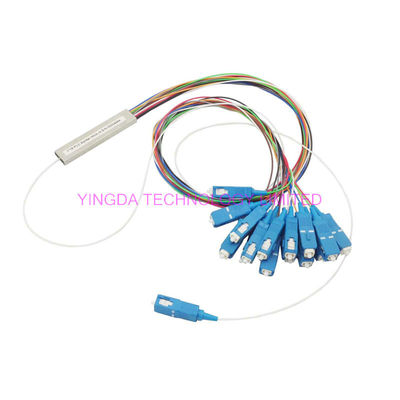

0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector
PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
Installation is simple using a variety of connector types or fusion splicing.
Features:
• Singlemode PLC Splitters in a variety of package types and configurations
• Optical performance 100% factory tested
• UPC, and APC polish types available for connectorized products
• Low Insertion Loss, Back Reflection and PDL
• Telcordia GR-CORE 1221 certified

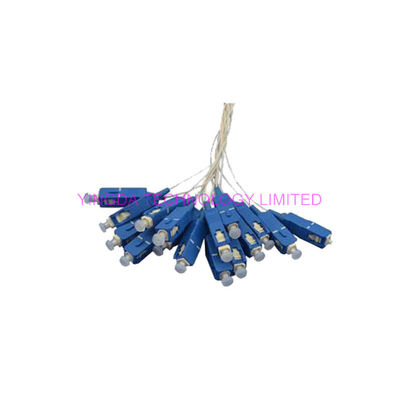

More pictures
Technical Specs for PLC Splitter with Connector
1xn SPLITTER
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 | |
| Fiber Type | G.657.A | |||||||
| Working Wavelength | 1260nm~1650nm | |||||||
| Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 | |
| P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 | |
| Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
| Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| Return Loss(dB) | ≥50 | |||||||
| Directivity(dB) | ≥55 | |||||||
| Operating Temp.Gange | -40℃~+85℃ | |||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | ||||||||
2XN splitter
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | ||
| Fiber Type | G.657.A | ||||||||
| Working Wavelength | 1260nm~1650nm | ||||||||
| Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 | ||
| P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 | ||
| Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | ||
| Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| Return Loss(dB) | ≥50 | ||||||||
| Directivity(dB) | ≥55 | ||||||||
| Operating Temp.Gange | -40℃~+85℃ | ||||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||||
PLC PRODUCTION LINES:
วิดีโอ
วิดีโอ
|
|
| ชื่อแบรนด์: | YINGDA |
| เลขรุ่น: | 1*16 mini plc splitter |
| ขั้นต่ำ: | 100 pcs |
| ราคา: | 1.1USD-4.58USD |
| รายละเอียดการบรรจุ: | 2pc/ box, 20pcs/carton box |
0.9mm Steel Tube Fiber Optic PLC Splitter 1X16 G657A1 1.5m 0.9mm With SC UPC Connector
PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.
Installation is simple using a variety of connector types or fusion splicing.
Features:
• Singlemode PLC Splitters in a variety of package types and configurations
• Optical performance 100% factory tested
• UPC, and APC polish types available for connectorized products
• Low Insertion Loss, Back Reflection and PDL
• Telcordia GR-CORE 1221 certified
More pictures
Technical Specs for PLC Splitter with Connector
1xn SPLITTER
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 | |
| Fiber Type | G.657.A | |||||||
| Working Wavelength | 1260nm~1650nm | |||||||
| Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 | |
| P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 | |
| Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
| Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| Return Loss(dB) | ≥50 | |||||||
| Directivity(dB) | ≥55 | |||||||
| Operating Temp.Gange | -40℃~+85℃ | |||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | ||||||||
2XN splitter
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | ||
| Fiber Type | G.657.A | ||||||||
| Working Wavelength | 1260nm~1650nm | ||||||||
| Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 | ||
| P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 | ||
| Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | ||
| Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| Return Loss(dB) | ≥50 | ||||||||
| Directivity(dB) | ≥55 | ||||||||
| Operating Temp.Gange | -40℃~+85℃ | ||||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||||
PLC PRODUCTION LINES:
