| ขั้นต่ำ: | 200pcs, first order accept small order |
| ราคา: | 1.0USD-18.6USD |
| บรรจุภัณฑ์มาตรฐาน: | 1pc/box, 20pcs/carton box |
| Delivery period: | 5-8working days |
| วิธีการจ่ายเงิน: | T/T, Western Union, MoneyGram, L/C |
| ความสามารถในการจัดหา: | 50k per month |

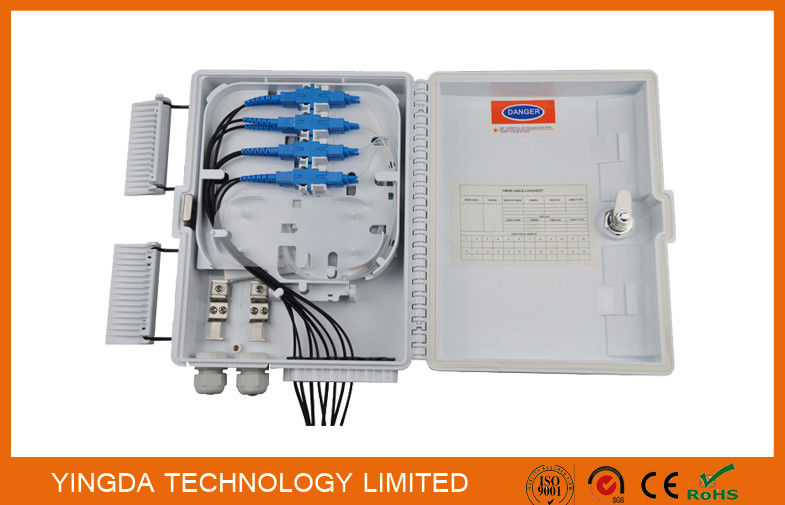

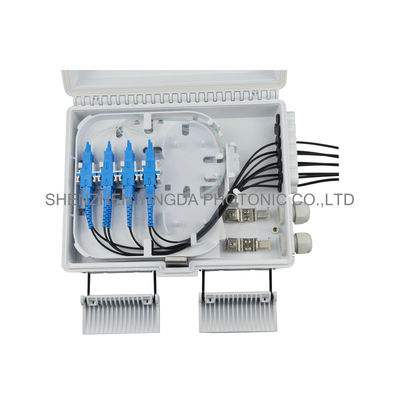

Outdoor 12Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter IP65
FDB0216G optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH.
Features
White Color Box
Gray Color Box
Cable Entry Port can do cable gland or uncut cable express port like below:
Application
1.Widely used in FTTH (Fiber To the Home) access network
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
6.Suitable for Telekom UniFi
Specifications
| Model | FDB0216G |
| Dimension | 250*190*39mm |
| Max capacity |
12CORES ; PLC:1X2,1X4,1X8,1X12 |
| Max adapter | 12X SC simplex, LC duplex adapter |
| Max splitter ratio | 1x2,1x4,1x8,2x4,2x8 mini splitter |
| Cable port | 2in 16out |
| Cable diameter | In: 16mm; out:2*3.0mm drop cable or indoor cable |
| Material | PC+ABS |
| Color | White, black, gray |
| Environmental requirement | Working temprature : -40℃~+85℃ Relative humidity : ≤85% (+30℃) Atmospheric pressure : 70Kpa~106Kpa |
| Main technical | Insertion loss : ≤0.2db UPC return loss : ≥50db APC return loss : ≥60db Life of insertion and extraction : >1000 times |
| Thunder-proo technical |
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC); IR≥2*104MΩ/500V(DC)
|
Standard Accessories
Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, buffer tube, pole mount or wall mount kits etc.
วิดีโอ
วิดีโอ
|
|
| ขั้นต่ำ: | 200pcs, first order accept small order |
| ราคา: | 1.0USD-18.6USD |
| บรรจุภัณฑ์มาตรฐาน: | 1pc/box, 20pcs/carton box |
| Delivery period: | 5-8working days |
| วิธีการจ่ายเงิน: | T/T, Western Union, MoneyGram, L/C |
| ความสามารถในการจัดหา: | 50k per month |
Outdoor 12Core Fiber Optic Distribution Box / Ftth Terminal Box For 1x8 Optical Splitter SC Adapter IP65
FDB0216G optic fiber boxes is applicable PLC coupler to a terminal access links FTTH access system. It is especially for connecting and protection for fiber cable for FTTH.
Features
White Color Box
Gray Color Box
Cable Entry Port can do cable gland or uncut cable express port like below:
Application
1.Widely used in FTTH (Fiber To the Home) access network
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
6.Suitable for Telekom UniFi
Specifications
| Model | FDB0216G |
| Dimension | 250*190*39mm |
| Max capacity |
12CORES ; PLC:1X2,1X4,1X8,1X12 |
| Max adapter | 12X SC simplex, LC duplex adapter |
| Max splitter ratio | 1x2,1x4,1x8,2x4,2x8 mini splitter |
| Cable port | 2in 16out |
| Cable diameter | In: 16mm; out:2*3.0mm drop cable or indoor cable |
| Material | PC+ABS |
| Color | White, black, gray |
| Environmental requirement | Working temprature : -40℃~+85℃ Relative humidity : ≤85% (+30℃) Atmospheric pressure : 70Kpa~106Kpa |
| Main technical | Insertion loss : ≤0.2db UPC return loss : ≥50db APC return loss : ≥60db Life of insertion and extraction : >1000 times |
| Thunder-proo technical |
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC); IR≥2*104MΩ/500V(DC)
|
Standard Accessories
Cabinet keys; Plastic expansion screw, Self-tapping screws; Hose clamps, Shrinkable sleeves, buffer tube, pole mount or wall mount kits etc.
