LC / APC Simplex Green Single Mode Fiber Optic Adapter 1310nm , LC Fiber Coupler
ติดต่อฉันเพื่อรับตัวอย่างและคูปองฟรี
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สไกป์: sales10@aixton.com
หากคุณมีข้อสงสัย เราพร้อมให้ความช่วยเหลือทางออนไลน์ตลอด 24 ชั่วโมง
xFiber count | 1fiber siimplex | connector material | plastic |
---|---|---|---|
adapter color | green | sleeve material | ceramic |
fiber type | SM 9/125um | polish mode | APC |
working temperature | -40 ~ +80 °C | wavelength | 1310nm, 1550nm |
แสงสูง | fiber optic coupler,bare fiber adapter |

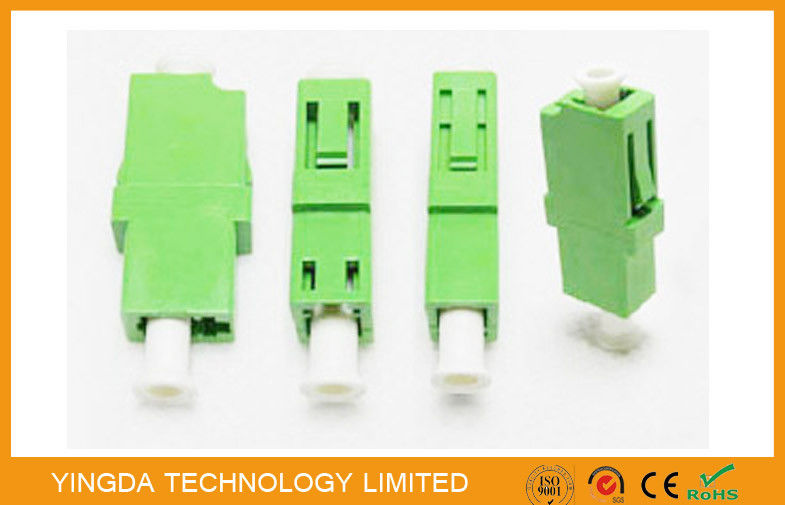

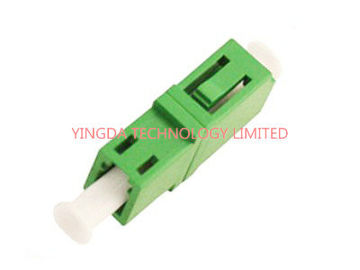

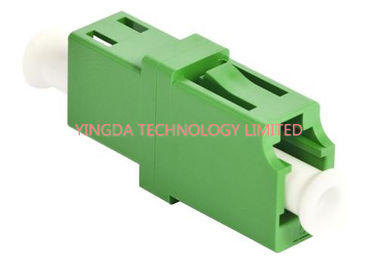

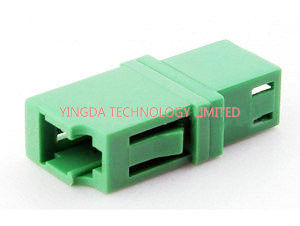

LC / APC Simplex Green Single Mode Adapter Adaptor, Plastic LC Fiber Coupler
Institute of LC type connector is a famous BELL (BELL) research and development, using the
convenient operation modular jack (RJ) latch mechanism is made. The pin and the size of the
sleeve is adopted by the general SC, FC, half size of 1.25 MM. This can increase the density
of optical fiber connector in the optical fiber distribution frame. At present, in terms of single-
mode SFF, LC type of connector has occupied the dominant position, actual application in the
field of multimode is also growing rapidly.
This coupler provides a solution for extending a current run of fiber optic cabling. This coupler
is constructed from high grade plastic and has been designed and engineered for durability
and a long life.
Features
- Conforms to Telcordia GR-326-CORE standard
- Conforms to YD/T-1272.3 standard
- Good interchangeability
- Low insertion loss
- Plug connection, easy and fast to install or uninstall
- 100% Test in factory
- 1 year guarantee
Application
- CATV network
- FTTH
- Telecommunication,etc
Specification
Item |
SM |
|
|
MM |
PC |
UPC |
APC |
||
Ferrule type |
Convex spherical |
big chamfer or step |
Convex spherical |
|
Ferrule ID (um) |
125 |
127 |
||
Main body material |
PBT or ABS |
|||
Connector type(mm) |
0.9/2.0/3.0mm, simplex, duplex |
|||
Operating temperature (°C) |
-40 ~+85 |
|||
Storage temperature (°C) |
-40 ~+85 |
Order information
Endface |
Fiber mode |
Fiber core |
Sleeve |
PC |
Multi mode |
simplex |
Cermic |
UPC |
Single mode |
duplex |
Phosphor bronze |
APC |
|
quad |
|
